The difference between a Way splitter and way tap

The difference between a Way splitter and way tap

1. The way splitter of ports are identified as: IN, OUT, OUT this is a second distributor.

2. Ports of tap are identified as: the IN and OUT, TAP, TAP this is a "second branch.

3. The way splitter of signals are the same, for example 306 distributor that is to say, there is a import export (OUT) (IN) three each number of DB attenuation is for export 6DB.

4. Taps can even pick up, and the distributor can't even meet, because distribution, even after attenuation level. Amplifier followed by a distributor to TV, two or more to get to the TV, please use among branches.

5. The biggest difference with the splitter is output to the television, the output, output to the TV splitter is BR outlet, and the distributor is OUT Outlet.

6. The splitter for the distribution of the signal is equal, is often used in cable television, 23468 distributor or greater.

7. Tap from the main road to branch mouth small signal power level.Distribution device called the branch.

8. Take the tap as an example, 410 is the inlet of the distributor (IN) and the outlet has only one outlet (OUT).  The remaining 4 BR(tap) ports are 10 dB OUT ports, and the attenuation is 2 dB. Insertion loss is what we often say.  When each output is cut off, the distributor must not be open, otherwise it will cause the double shadow of the cause of impedance mismatch, and the impedance matching unit is generally required.  There is little it can do for certain levels of branch outlets.

9. Tap/splitter difference: output, input level are not equal, splitter splitter output, input level completely equal.

10. The OUT output outlet of the tap is the output outlet that needs to be connected to the branch distributor in the next circuit. Because the attenuation of the OUT output outlet of the branch is very small, it is used as the branch equipment of the trunk road to reduce the attenuation of TV signals in the series line behind, and to balance the signals in the whole line with the trunk amplifier.

The summary is as follows:

Way tap is in a primary output signal through cases, detachments can lower than the main one or a few equals the signal of the output signal of electronic circuit, it also has the very good isolation, as long as with the standard in the main output impedance of the coaxial cable or terminal matching resistance, branch mouth open or short circuit to the input port of the networkLittle impact, cable TV network to use this feature to connect the user terminal main input port.

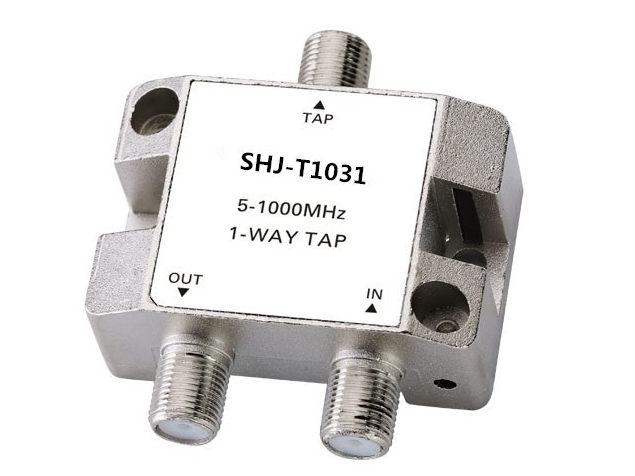

Way tap: take out from the main road to branch mouth small signal power level distribution device called the branch.The main output/input port with OUT and said that IN branch branch mouth expressed IN BR.

Way splitter input signal, etc, assigned to the output power level distribution device called a distributor. The output/input port with OUT and IN said.
