MT-1033-AD Fiber Optic Attenuator ST FC SC LC 5dB 7dB 8dB 10dB Optic Fiber Attenuator

From 1db to 30 db can be chosen
Availability:
Quantity:
  • MT-1033-AD

  • MELONTEL

Fiber Optic Attenuator


Fiber optic attenuator is a device used to reduce the power level of an optical signal.

Features:
High precision of attenuation
Low additional loss
Good stability

Application:
Fiber optical telecommunication
Fiber optical CATV
Fiber optical sensor
Testing equipment

Quick Details

Name :

Fiber Optic Attenuator

Country Of Origin :

Ningbo,China

Color:

Red

Fiber Type:

Singlemode

Fiber Count:

Simplex

Connector Type:

FC UPC

Insertion Loss:

0dB to 30dB

Packing :

50 Pcs/Blister Box

Certification :

ISO9001:2008


Application

fiber optic adaptor

Product Show

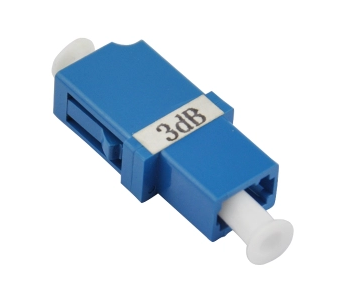

 1.1.1 YH-1033-A AttenuatorFC APCFC8LC 3LCFCSC 5SC-5SC 10FC 10.jpgFC 51.jpgFC 101.jpgFC.jpgFC8.jpg

Optical Performance

M-F Plug Type

F-F Adaptor Type

Testing Wavelength(nm)

SM: 1310nm/1550nm

1310nm


MM: 850nm/1300nm


Attenuation Accuracy(dB)

1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value

Return Loss(dB)

≥50dB (PC)

≥50dB (PC)


≥60dB (APC)

≥60dB (APC)

Input Power (Max.) (mW)

300

Durability(dB)

<0.2dB Typical, 1000 Matings

Operating Temperature(°C)

-40~+80

Storage Temperature(°C)

-40~+85




.jpg

Fiber optic Attenuators are used in applications where a pre-determined amount of light loss is specified.
We offer LC, FC, SC, ST, MU fixed attenuator with different attenuation level, from 1dB to 30dB.

Key Features

· Bellcore Compliant

· Wavelength Independent

· Durability & Simple and Reliable Structure
Specifications

· Operating Wavelength: SM: 1310nm, 1550nm

· MM: 850nm, 1300nm

· Return loss: More than 55dB (UPC)

· Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30)

· Polarization Dependent Loss: Less than 0.2dB

· Max. Optical Input Power: 200mW

· Operating Temp Range: -40~80°C



Applications

· l  Telecommunication Networks

· l  Local Area Network

· l  FTTH and FTTx

· l  Fiber Optic Sensors

· l  Test & measurement

· l  DWDM applications










Packaging & Delivery&Supply

supply application

Supply Ability

package

Packing Details

location

Port

the lead time

Lead Time

1000 Piece/Pieces per Day 50 Pcs/Blister Box NingBo 5 days
