MT-1041-M
MELONTEL

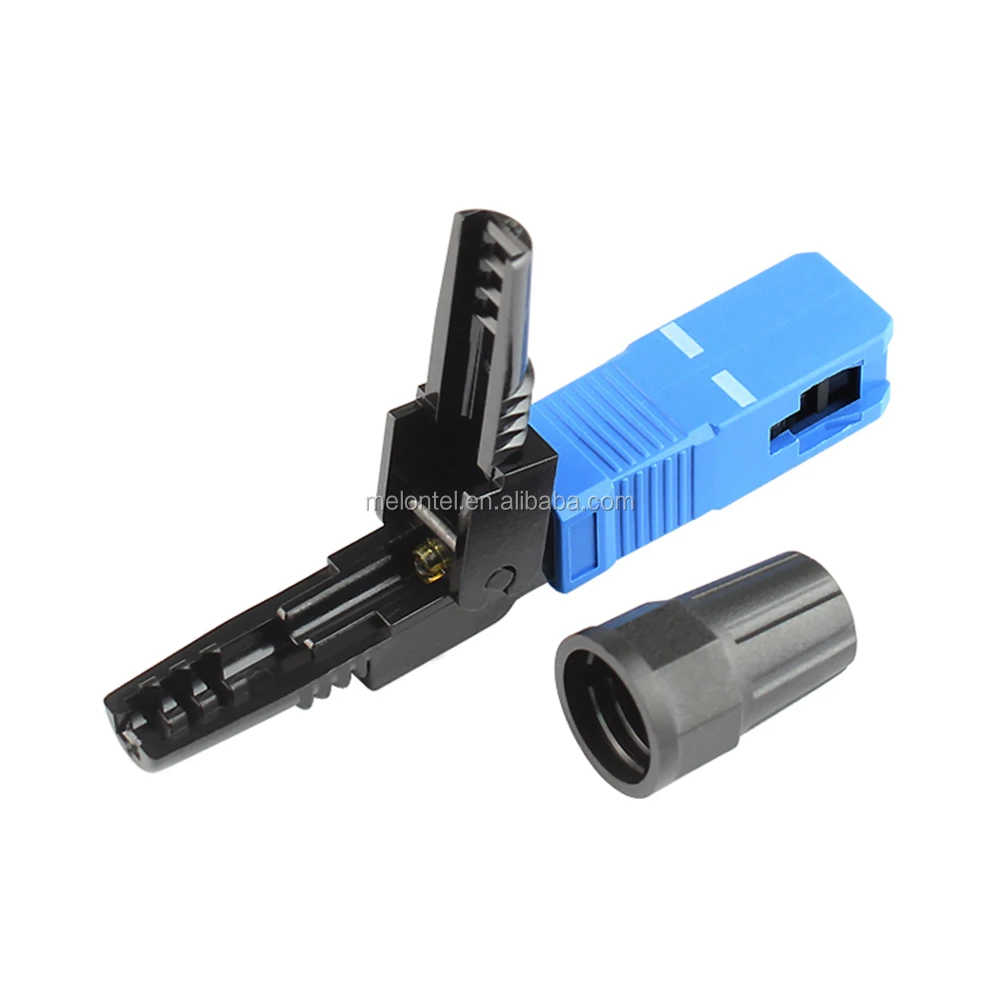

Fiber Optic Fast Connector
Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection. Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU. |
Quick Details
Product name: | Fiber Optic Fast Connector |
Country of origin: | Ningbo,China |
Application: | FTTH |
Color: | Blue |
Length: | 60mm |
Connector type: | SC/UPC |
Fiber type: | Single-mode |
Packing: | 10 pcs /box |
Connect type: | Mechanical |
Application
Product Show
Mode | SM |
Operation Time | about 15s(exclude fiber presetting) |
Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
Return Loss | ≤ -45dB |
Success Rate | >98% |
Reusable Times | >10 times |
Tighten Strength of Naked Fiber | >5 N |
Tensile Strength | >50 N |
Teperature | -40~+85℃ |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
Mechanical Durability(500 times) | IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
Packaging & Delivery&Supply
Supply Ability | Packing Details | Port | Lead Time |
1000 Piece/Pieces per Day | 50 Pcs/Blister Box | NingBo | 5 days |
Fiber Optic Fast Connector
Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection. Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU. |
Quick Details
Product name: | Fiber Optic Fast Connector |
Country of origin: | Ningbo,China |
Application: | FTTH |
Color: | Blue |
Length: | 60mm |
Connector type: | SC/UPC |
Fiber type: | Single-mode |
Packing: | 10 pcs /box |
Connect type: | Mechanical |
Application
Product Show
Mode | SM |
Operation Time | about 15s(exclude fiber presetting) |
Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
Return Loss | ≤ -45dB |
Success Rate | >98% |
Reusable Times | >10 times |
Tighten Strength of Naked Fiber | >5 N |
Tensile Strength | >50 N |
Teperature | -40~+85℃ |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
Mechanical Durability(500 times) | IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
Packaging & Delivery&Supply
Supply Ability | Packing Details | Port | Lead Time |
1000 Piece/Pieces per Day | 50 Pcs/Blister Box | NingBo | 5 days |
