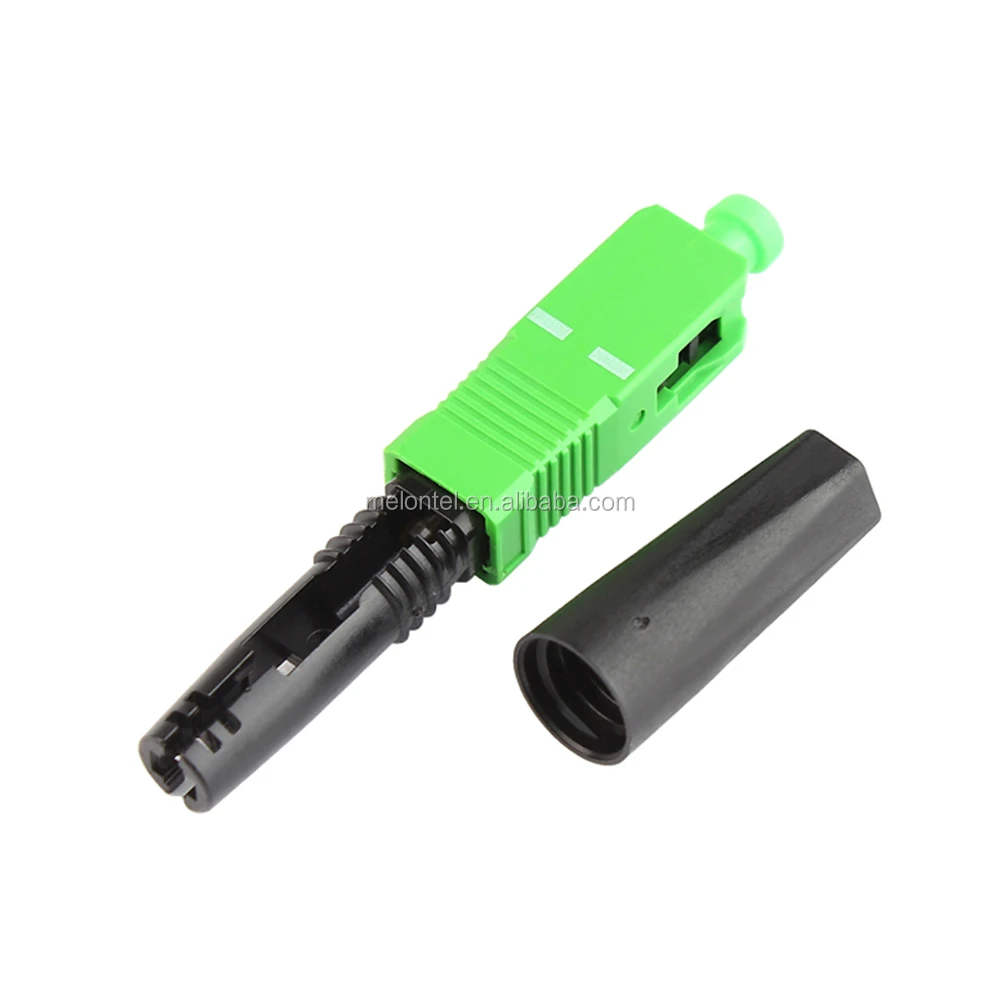

MT-1041-S SC Fast Connector SC/APC UPC Fast Drop Wire Optical Quick Connector for Covered Optical Cable

Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
Availability:
Quantity:
  • MT-1041-S

  • MELONTEL

Fiber Optic Fast Connector


Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.

Quick Details

Product name:

Fiber Optic Fast Connector

Country of origin:

Ningbo,China

Application

FTTH

Color

Green

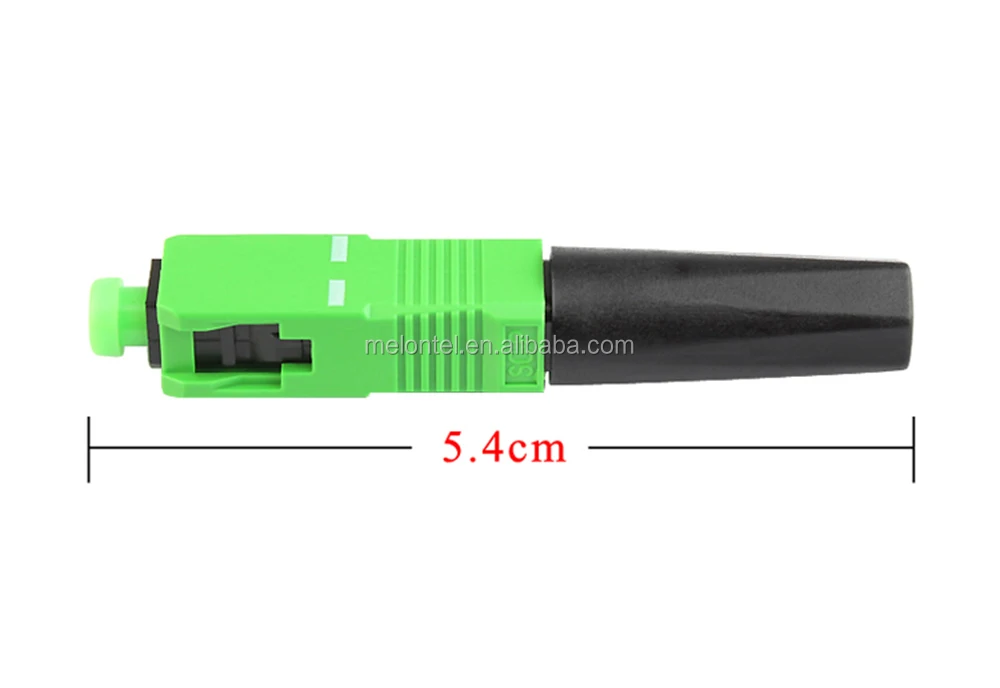

Length

50mm

Connector type

SC/APC

Fiber type:

Single-mode

Packing:

10 pcs /box

Connect type:

Mechanical


Application

fiber optic adaptor

Product Show






Mode

 SM

Operation Time

 about 15s(exclude fiber presetting)

Insertion Loss

 ≤ 0.3dB(1310nm & 1550nm)

Return Loss

 ≤ -45dB

Success Rate

 >98%

Reusable Times

 >10 times

Tighten Strength of Naked Fiber

 >5 N

Tensile Strength

 >50 N

Teperature

 -40~+85

On-line Tensile Strength Test (20 N)

 IL ≤ 0.3dB

Mechanical Durability(500 times)

 IL ≤ 0.3dB

Drop Test(4m concrete floor, once each direction, three times total)

 IL ≤ 0.3dB




Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.





Packaging & Delivery&Supply

supply application

Supply Ability

package

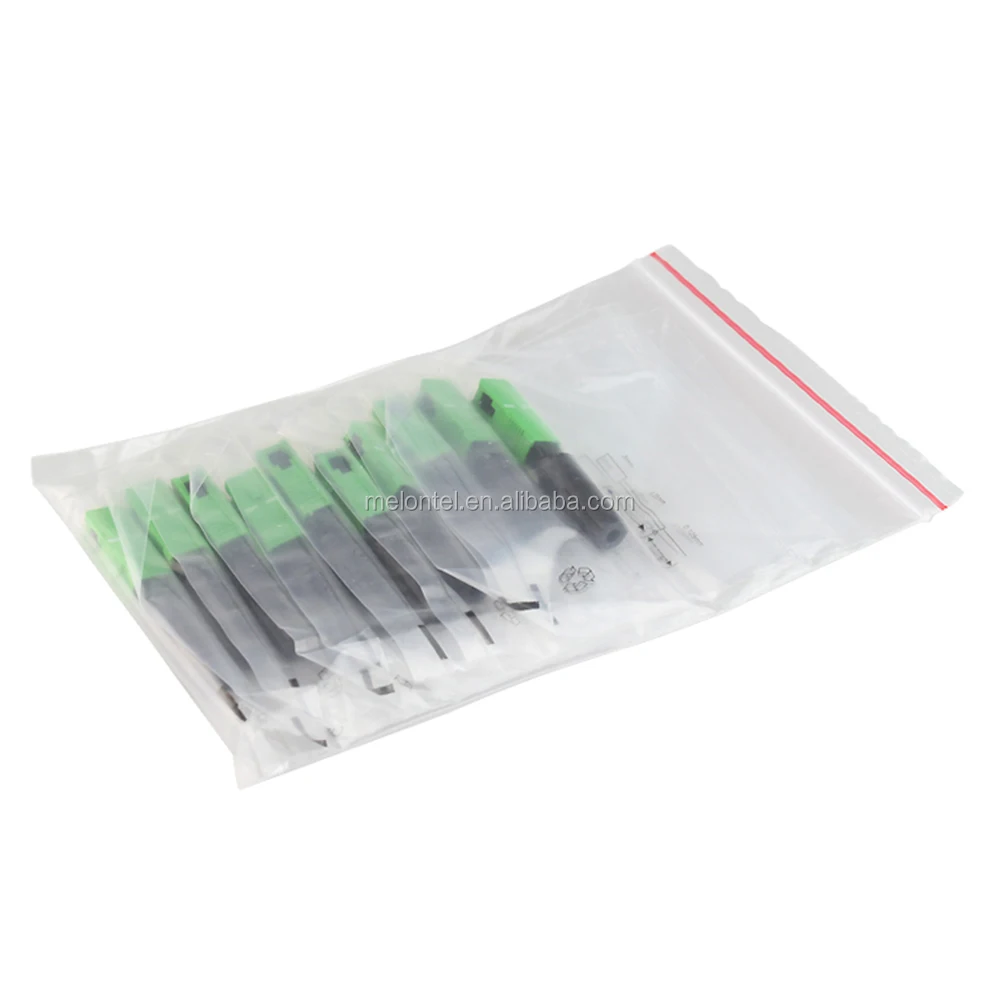

Packing Details

location

Port

the lead time

Lead Time

1000 Piece/Pieces per Day 50 Pcs/Blister Box NingBo 5 days


Product Solutions


1. FTTX

fttx


FTTX is short for "Fiber To The X," which means "Fiber To a Place." FTTX is a general term for various Fiber optic communication networks, where X stands for The destination of The Fiber optic line.

application


2. Structured cabling


Structured cabling


Structured cabling is building or campus telecommunications cabling-infrastructure that consists of a number of standardized smaller elements(hence structured) called subsystems.



Structured cabling is a technique for the construction of all the communication network infrastructure in the building. Reasonable wiring can not only save the investment, but also optimize the network to achieve the best use effect.



Our networking cabling contains many kind of products. Such as lan patch cord、modular plug、keystone jack、inline coupler、surface box、face plate、patch plate、cable panel、cable manager and rack.


3. Networking


networking


Networking is a globally coordinated network of specific devices used to transfer, accelerate, display, calculate, and store data information on the internet network infrastructure.



Server is a computer software that manages resources and provides services to users, usually divided into file servers (which allow users to access files on other computers), database servers, and application servers.A computer running the above software, or a network host.


4. Security and Protection


Security and Protection

Acquisition front end

 Monitoring terminal

Server room

Acquisition front end Monitoring terminal Server room
