1.25G 20km BiDi SFP Module Selection Guide: How Single-Fiber BiDi Saves Network Deployment Costs

What is a BiDi SFP Module and How Does It Work?

BiDi (Bidirectional) transceivers are single-fiber bidirectional optical modules. Unlike traditional transceivers that require a pair of fibers—one for transmitting (Tx) and one for receiving (Rx)—BiDi modules utilize Wavelength Division Multiplexing (WDM) technology. This allows optical signals to transmit and receive simultaneously over a single strand of fiber.

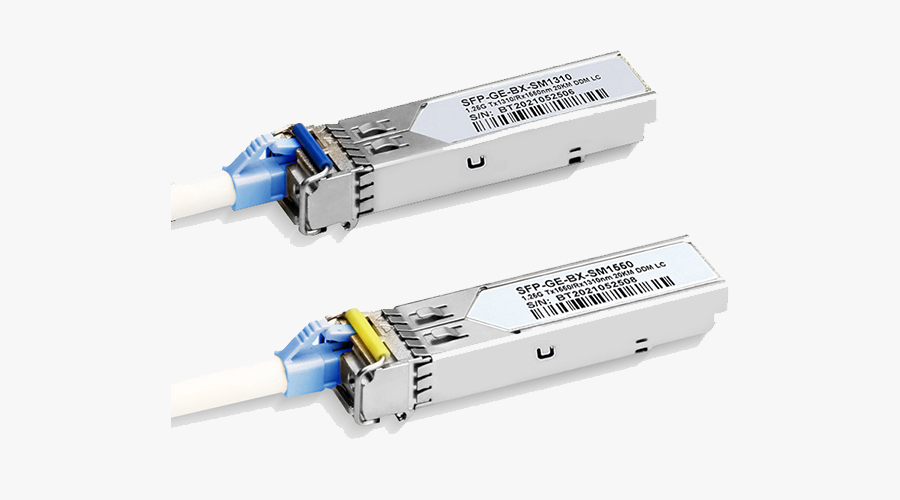

The product labels clearly demonstrate this pairing mechanism:

• Asymmetric Wavelength Matching: These modules are designed as a complementary pair using Tx1310nm/Rx1550nm and Tx1550nm/Rx1310nm configurations.

• The Rule of Pairing: In a live deployment, these modules must be used in pairs. If Switch A uses the Tx1310/Rx1550 module, Switch B on the opposing end must use the Tx1550/Rx1310 module to establish a successful full-duplex communication link.

Core Advantages of the 1.25G 20km BiDi SFP Module

1. Saves 50% on Fiber Infrastructure Costs

The most significant benefit of BiDi technology is cutting fiber utilization in half. By migrating from dual-fiber to single-fiber paths, you instantly free up existing fiber strands or reduce the cost of leasing/laying new fiber cables. This is highly beneficial in fiber-constrained environments where installing new infrastructure is cost-prohibitive.

2. Reliable 20km Long-Range Transmission

Leveraging the low-attenuation characteristics of Single-Mode Fiber (SMF), this module reliably drives Gigabit traffic up to 20 kilometers (12.4 miles). This extended reach makes it perfect for connecting cross-campus facilities, metro access networks, and backhauling data from remote monitoring stations.

3. Integrated Digital Diagnostic Monitoring (DDM)

Equipped with DDM (Digital Diagnostic Monitoring) functionality, this SFP transceiver gives administrators real-time visibility. Through the switch management interface, you can monitor critical metrics such as optical output power, optical input power, temperature, laser bias current, and supply voltage, simplifying proactive maintenance and troubleshooting.

4. High Compatibility and Hot-Pluggable Design

Adhering to the standard SFP MSA (Multi-Source Agreement) form factor, this hot-swappable module integrates seamlessly without disrupting active system operations. With tailored firmware coding, it offers excellent compatibility across major switch, media converter, and router brands, including Cisco, Huawei, H3C, Netgear, TP-Link, and more.

Typical Application Scenarios

• Enterprise Campus Backbone: Interconnecting main data centers with remote warehouses or satellite offices located kilometers away.

• FTTx Access Networks: Providing point-to-point Gigabit connections from the central office (OLT) down to customer premises (ONU/ONT).

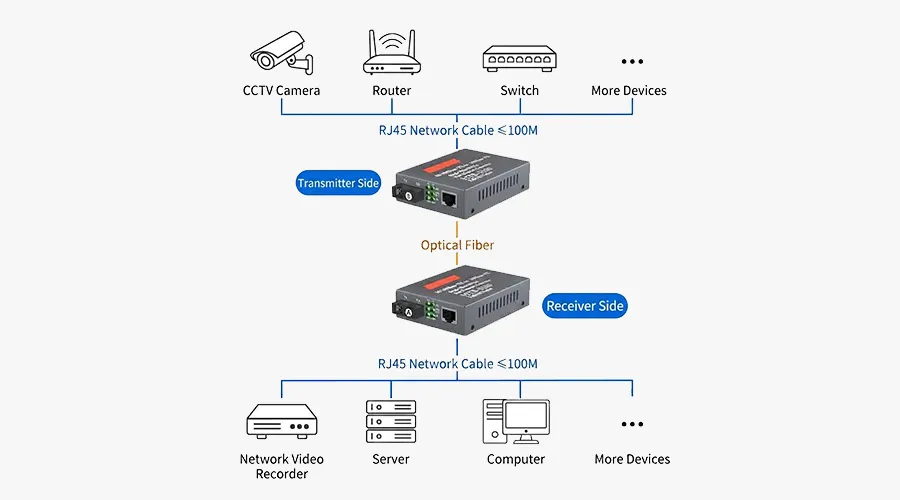

• Industrial and Surveillance Networks: Backhauling HD IP camera data from remote perimeters, highways, or railway stations back to a centralized control room switch.

Deployment Tips to Avoid Connectivity Issues

When purchasing and deploying 1.25G 20km BiDi SFP modules, keep these best practices in mind:

1. Always Purchase in Pairs: Ensure your order contains both the Tx1310/Rx1550 (typically marked with a blue color-coded bail latch) and Tx1550/Rx1310 (green bail latch) modules. Two identical wavelengths cannot communicate with each other.

2. Match with Single-Mode LC Simplex Cables: This transceiver features a single simplex LC port. It must be paired exclusively with a Single-Mode (OS2/OS1) simplex LC fiber patch cord; multi-mode cables are incompatible.
