Deploying communication networks in hazardous underground environments—such as coal mines, subway tunnels, and petrochemical plants—requires optical cables that deliver robust physical protection without posing a fire hazard. In these high-risk industrial facilities, choosing a dedicated MGXTSV fiber cable is essential. Engineered with a flame-retardant blue LSZH outer jacket, corrugated steel tape armor, and a rugged dual-sheath structure, this specialized cable ensures reliable data transmission while meeting strict industrial fire-safety and explosion-prevention standards.
An MGXTSV fiber cable is a specialized mining and tunnel flame-retardant optical cable designed to withstand severe mechanical impact, moisture intrusion, and potential fire hazards in confined spaces.

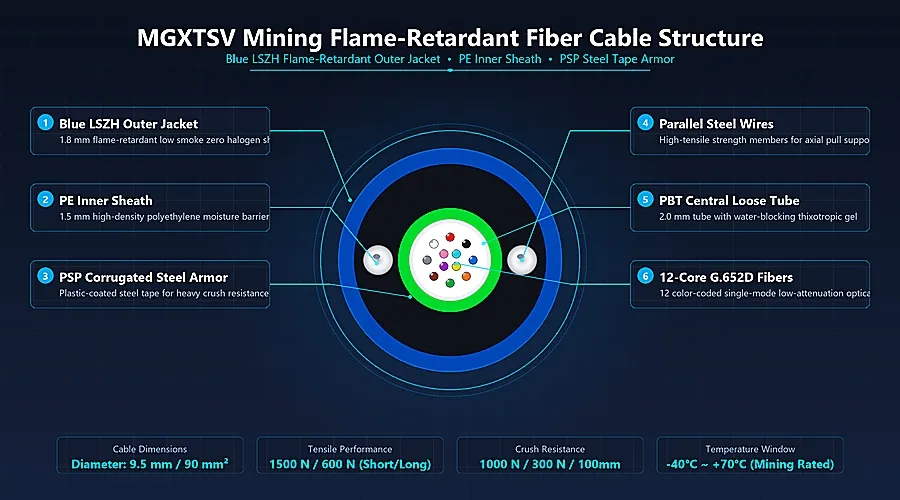

The outermost layer features a high-grade, distinctive blue Low Smoke Zero Halogen (LSZH) jacket with a thickness of 1.8 mm1.8 mm. This specialized polymer complies with IEC 60332 vertical flame propagation standards to minimize smoke emission and toxic acidic gas release during combustion. Beneath the LSZH jacket lies a 1.5 mm1.5 mm Polyethylene (PE) inner sheath that enhances moisture resistance and mechanical cushioning.
Between the dual sheaths, a longitudinal Plastic-Coated Corrugated Steel Tape (PSP) provides comprehensive 360-degree radial crush resistance and anti-rodent protection. At the center of the core, a solid 0.8 mm0.8 mm phosphated steel wire acts as the central strength member, offering foundational axial tensile stability against elongation.
Inside the core, a 2.0 mm2.0 mm central PBT loose tube houses 12 color-coded ITU-T G.652.D single-mode optical fibers. The tube is completely filled with thixotropic water-blocking gel to prevent moisture ingress and safeguard transmission performance.
When evaluating technical specifications for mine communication networks, verify that the cable conforms to international IEC 60794 optical cable mechanical standards:
Optical Attenuation: ≤0.35 dB/km≤0.35 dB/km at 1310 nm1310 nm and ≤0.21 dB/km≤0.21 dB/km at 1550 nm1550 nm for low-loss long-distance telemetry.
Tensile Strength: 1500 N1500 N short-term rating (installation pull load) and 600 N600 N long-term operating rating.
Crush Resistance: 1000 N/100mm1000 N/100mm short-term and 300 N/100mm300 N/100mm long-term lateral load resistance.
Bending Radius: 20D20D dynamic bending radius during pulling and 10D10D static bending radius after fixed routing.
Physical Dimensions: Compact 9.5 mm9.5 mm outer diameter with a cross-sectional area of 90 mm290 mm2 and a lightweight profile of 95 kg/km95 kg/km.
Temperature Range: Reliable performance across an operating temperature range of −40℃−40℃ to +70℃+70℃ (−10℃−10℃ to +40℃+40℃ during installation).
Deploying an MGXTSV fiber cable provides superior fire safety and physical durability across three core industrial applications:
In underground coal mines and vertical drift roadways, cables must endure damp atmospheres, rockfalls, and strict fire prevention regulations. The flame-retardant blue jacket prevents flame propagation along tunnel walls, while the PSP armor defends against rock abrasions and rodent damage. It connects into heavy-duty underground and monitoring .
Confined transportation tunnels require non-toxic, zero-halogen communication backbones for emergency intercoms, video surveillance, and fire alarm systems. The LSZH outer layer ensures passenger safety by eliminating toxic fumes in emergency scenarios.
In chemical refineries and gas processing plants where explosive vapors exist, the rugged dual-sheath armor shields internal optical signals from chemical corrosion and mechanical machinery impact.
Parameter / Feature | MGXTSV Mining Cable | GYTS Outdoor Cable | GYTA Outdoor Cable |
|---|---|---|---|
Outer Jacket Material | Blue LSZH (Flame-Retardant) | Black PE (Weather-Resistant) | Black PE (Weather-Resistant) |
Inner Jacket | 1.5 mm1.5 mm PE Inner Sheath | No Inner Sheath | No Inner Sheath |
Armor Type | PSP Corrugated Steel Tape | PSP Corrugated Steel Tape | APL Aluminum Tape |
Fire Safety Rating | Flame-Retardant & Low Smoke | Standard Outdoor (Flammable PE) | Standard Outdoor (Flammable PE) |
Cable Color | Industrial Safety Blue | Standard Black | Standard Black |
Primary Applications | Coal Mines, Tunnels, Petrochem | Direct Buried, Ducts, Aerial | Ducts, Aerial Lashing |
Selecting an MGXTSV fiber cable ensures your industrial communication infrastructure achieves the highest safety compliance, mechanical durability, and optical reliability. With its dual-sheath flame-retardant construction, robust steel armor, and 12-core G.652.D fibers, it provides optimal long-term protection for underground mining and hazardous industrial networks.
