How to Choose the Best OPGW Fiber Cable?

Views: 0     Author: Tina     Publish Time: 2026-09-30      Origin: Site

Introduction

In high-voltage power transmission networks, power utilities and grid engineers face the dual challenge of protecting overhead transmission towers from lightning strikes while building high-bandwidth, long-distance communication backbones. Selecting the right OPGW fiber cable (Optical Ground Wire) provides the ultimate integrated solution. By combining conventional overhead ground wire shielding with ultra-low-loss optical fibers enclosed in a hermetically sealed stainless steel tube, this advanced cable design guarantees maximum electrical safety, exceptional mechanical load resistance, and reliable optical data transmission over long spans.

What Is OPGW Fiber Cable and How Is It Constructed?

An OPGW fiber cable is an optical ground wire engineered to replace traditional static/shield wires at the topmost position of high-voltage transmission towers. Its specialized multi-layer construction protects sensitive optical fibers from short-circuit heat and extreme environmental stress.

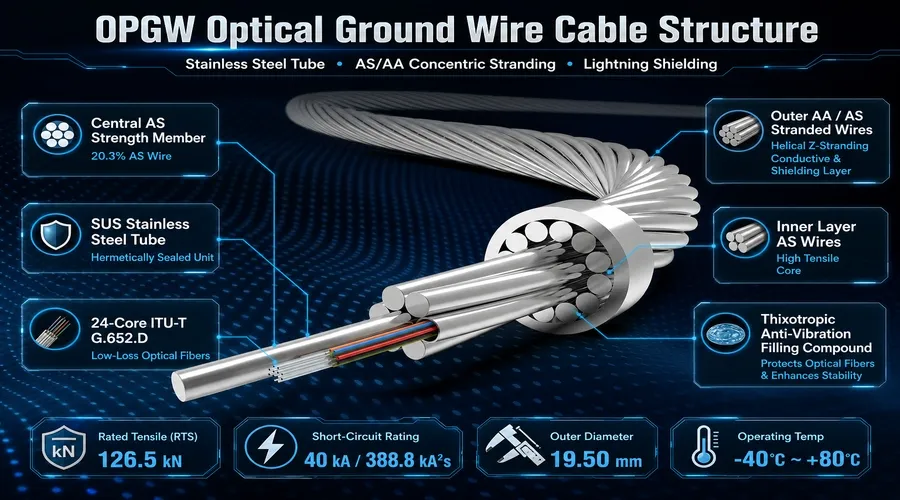

Hermetically Sealed Stainless Steel Optical Fiber Unit

At the heart of the cable structure is a laser-welded stainless steel tube (SUS tube, 3.90 mm3.90 mm diameter) that provides a rugged, pressure-resistant, and hermetically sealed chamber for 24 ITU-T G.652.D single-mode optical fibers. The tube interior is completely filled with thixotropic anti-vibration filling grease to prevent water vapor ingress and cushion the optical fibers against mechanical shock.

Concentric Metallic Stranding: Aluminum-Clad Steel (AS) and Aluminum Alloy (AA) Wires

Surrounding the central 20.3% AS20.3% AS wire (3.90 mm3.90 mm), the inner layer incorporates 5 aluminum-clad steel (AS) wires alongside the stainless steel optical unit. The outer layer utilizes high-conductivity aluminum alloy (AA) and aluminum-clad steel (AS) wires stranded in a right-hand Z-stranding direction over a total bearing cross-sectional area of 215.0 mm2215.0 mm2 (AS area:71.68 mm2AS area:71.68 mm2, AA area:143.35 mm2AA area:143.35 mm2). This metallic matrix complies with IEEE 1138 and IEC 60794 standards to provide both superior axial mechanical tensile strength and low electrical resistance.


Critical Mechanical and Electrical Specifications to Evaluate

When reviewing technical datasheets for an OPGW cable, power utilities must evaluate four core engineering parameters:

1. Lightning Shielding & Short-Circuit Fault Current Capacity

As an overhead ground wire, the cable must safely dissipate direct lightning strikes and high fault currents to the ground without overheating the internal optical fibers:

  • Short-Circuit Current Rating: 40 kA40 kA (for 0.25 s0.25 s over 20℃20℃ to 200℃200℃).

  • Short-Circuit Current Capacity (I2tI2t): 388.8 kA2s388.8 kA2s.

  • Direct-Current (DC) Resistance: Ultra-low resistance of 0.2 Ω/km0.2 Ω/km, minimizing power loss and thermal buildup during grounding.

2. High Mechanical Tensile Strength & Sag Resistance

OPGW cables must endure severe environmental loads, including high-velocity gale-force winds, heavy ice accretion, and expansive river or valley crossings:

  • Rated Tensile Strength (RTS): 126.5 kN126.5 kN.

  • Ultimate Tensile Strength (UTS): 135.5 kN135.5 kN.

  • Maximum Allowable Working Stress (MAT, 40% RTS): 235.3 N/mm2235.3 N/mm2.

  • Daily Stress (EDS, 20% to 25% RTS): 117.7 to 147.1 N/mm2117.7 to 147.1 N/mm2.

  • Young's Modulus (E-Modulus): 97.3 kN/mm297.3 kN/mm2 with a thermal expansion coefficient of 17.5×10−6/℃17.5×10−6/℃.

  • Cable Dimensions: Outer diameter of 19.50 mm19.50 mm with a nominal weight of 892 kg/km892 kg/km.

3. Ultra-Low Optical Attenuation Performance

Manufactured with 24-core single-mode G.652.D optical fibers, the finished cable delivers superior transmission metrics:

  • Optical Attenuation: ≤0.38 dB/km≤0.38 dB/km at 1310 nm1310 nm and ≤0.195 dB/km≤0.195 dB/km at 1550 nm1550 nm (enabling unrepeatered ultra-long span data links).

  • Polarization Mode Dispersion (PMD): ≤0.2 ps/(km)0.5≤0.2 ps/(km)0.5.

  • Proof Test Level: ≥0.69 GPa≥0.69 GPa.

  • Standard 12-Color Sequence: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua.

4. Rugged Temperature Range & Bending Parameters

  • Operating & Transport Temperature Window: −40℃−40℃ to +80℃+80℃.

  • Installation Temperature Range: −10℃−10℃ to +50℃+50℃.

  • Minimum Bending Radius: 487 mm487 mm under construction and 292 mm292 mm during fixed operation.


High-Voltage Installation & Hardware Fittings

Installing an OPGW fiber cable requires specialized high-voltage tension and suspension hardware fittings to ensure structural integrity across tower spans:

Tension Sets & Dead-End Clamps

Helical preformed aluminum-clad steel tension grips are designed to support up to 100% RTS100% RTS without crushing the internal stainless steel optical unit.

Suspension Assemblies & Vibration Dampers

Preformed suspension clamps with elastomer inserts minimize static bending stress at intermediate towers. Stockbridge-type vibration dampers are essential for mitigating wind-induced Aeolian vibration and sub-span oscillation across long spans.

Down-Lead Clamps & Metal Joint Boxes

Dedicated tower-leg clamps route the cable safely down high-voltage lattice towers into weatherproof metallic  Fiber Optic Splice Closures (FOSC) and substation  Optical Distribution Frames (ODF) for fusion splicing.


OPGW vs. ADSS vs. OPPC: High-Voltage Cable Comparison

Specification Parameter

OPGW Cable

ADSS Cable

OPPC Cable

Installation Location

Top of High-Voltage Towers (Ground Wire Position)

Below Power Phase Conductors (Induction Field)

Phase Conductor Position (Replaces Phase Wire)

Core Structure

Stainless Steel Tube + AS / AA Stranded Wires

All-Dielectric + Aramid Yarn + PE / AT Sheath

Stainless Steel Tube + Phase Conductor Stranding

Lightning & Grounding Role

Primary Ground Wire (40 kA40 kA Short-Circuit Rating)

No Grounding Function (Non-metallic)

Carries Full Phase Current

Tensile Strength (RTS)

Very High (126.5 kN126.5 kN, Steel Core)

Moderate (Aramid Yarn Reinforcement)

High (Phase Conductor Strength)

Space Potential & Tracking

Immune to Electrical Tracking (Metallic)

Requires Anti-Tracking (AT) Jacket (>110 kV>110 kV)

Operates at High Voltage Potential

Primary Application

110 kV∼1000 kV110 kV∼1000 kV Transmission Lines

10 kV∼220 kV10 kV∼220 kV Distribution Lines

Lines with No Ground Wire / Single-Pole Lines

Conclusion: How to Pick the Best OPGW Fiber Cable

Selecting the right OPGW fiber cable is crucial for ensuring the uninterrupted operation of both high-voltage power grids and smart telecommunication backbones. By carefully aligning your design with short-circuit current requirements (such as 40 kA/388.8 kA2s40 kA/388.8 kA2s), mechanical rated tensile strength (126.5 kN126.5 kN), and 24-core low-loss single-mode fibers, power utilities achieve a 30+ year maintenance-free operational lifespan.
