Maximizing Trunk Fiber Infrastructure Density with SMC FDH Cabinets

Choosing the correct passive infrastructure shapes long-term fiber network deployment returns.Operators must evaluate physical volumetric footprints alongside fiber cross-connection requirements.This technical analysis guides project contract reviewers across large-scale fiber distribution points.Implementing a localized 720 core fdh cabinet streamlines dense metropolitan housing clusters.
This rugged composite hardware unlocks maximum capacity scaling flexibility for main trunk lines.

Chemical Shell Resilience and Weatherproofing

Heavy-duty municipal distribution networks demand extreme environmental defense protection systems.Our specialized outdoor cabinets utilize premium sheet molding compound synthetic composite materials.

Material Testing and Environmental Performance

• High-intensity SMC unsaturated polyester materials resist extreme outdoor climate shifts.

• Anti-ultraviolet engineering formulas block severe long-term solar discoloration flawlessly.

• The compression-molded structural chassis prevents physical mechanical cracks or warping.

Furthermore, an integrated heavy-duty three-position latch locking mechanical array blocks vandalism.Heavy internal sliding bars lock the front doors at three distinct structural contact slots.This rigid mechanical closure compresses a multi-duct perimeter sealing strip tightly.The tight compression maintains a permanent, certified IP65 waterproof protection grade.Purchasing officers resultantly eliminate costly capital equipment replacement expenses from maintenance sheets.

Modular Splicing Matrix and Scheduling Agility

Managing hundreds of primary subscriber distribution fields demands ultra-tidy internal footprints.The high-capacity inner framework organizes dense backbone circuits without crossing friction.

Interior Framework and Tray Capacities

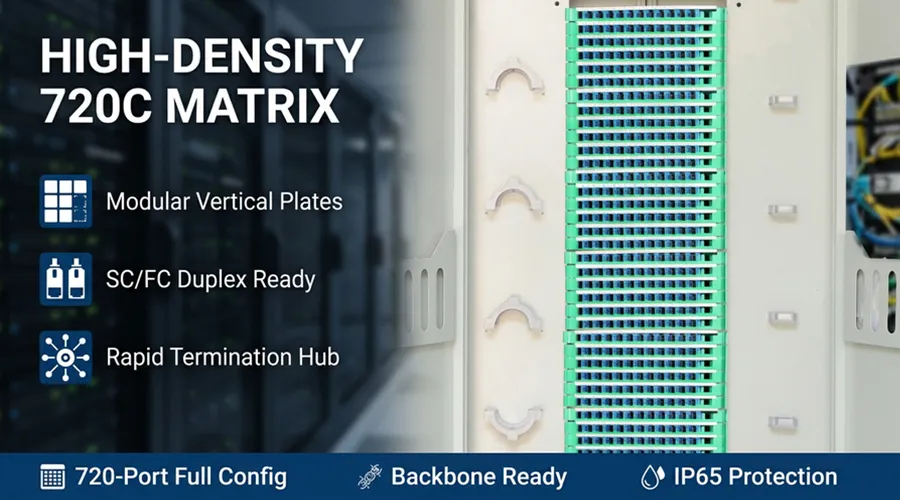

• The vertical mechanism accommodates up to 48 independent integrated splice trays.

• Each white polymer integrated tray unit houses exactly 12 fusion protection sleeves.

• Modular plates fit standard SC simplex or FC duplex adapter terminal interfaces

This modular tray setup gathers raw backbone fiber slacks into an isolated layer.The layer-isolated layout separates main incoming feeder lines away from subscriber drop links.Movable living pivot hinges allow field technicians to flip splicing trays up smoothly.Crews complete rapid on-site troubleshooting checks without creating cross-connection friction.Color-coded tracing identifier labels snap straight onto the tray fronts to accelerate port checking.Contractors save extensive field installation hours while maximizing network data transmission speeds.

Personnel Eyesight Safety and Curvature Metrics

Protection Parameters and Pathway Controls

• Interior panel fields integrate custom angled multi-port adapter installation plates.

• The specialized card slots feature precisely 35 degrees of downward obliquity.

• This geometry redirects intense high-power laser backscatter safely toward the box base.

Utility personnel complete live signal checking with total structural eyesight protection.
Simultaneously, the continuous routing tracks utilize molded internal arc distribution guide modules.
Rounded routing rings guide delicate drop patch cords smoothly across boundary corners.
This protective profile forces all pigtail trajectories above a strict 40mm bending radius.
Maintaining precise geometric curvature prevents critical macro-bending attenuation spikes completely.
Automated assembly lines validate execution tolerances via insulation resistance testing protocols.
The internal grounding rows successfully withstand massive 15kv DC loading capacities.
