Do you know the role and installation steps of the pacth panel in integrated wiring?

Views:2     Author:Ada Ru     Publish Time: 2021-10-29      Origin:Site

In the construction of network systems, irregular and unreasonable problems often arise in the selection and installation of patch panel. So, if you want to solve this kind of problem, you need to recognize the importance of the patch panel. Below, this article will mainly show the role of the patch panel in the network integrated wiring and how to install it correctly. Main text: With the popularization of the Internet, more and more data center constructions, and more and more comprehensive wiring technology. In the integrated wiring of the network, the installation and configuration of network core equipment such as switches and routers are often paid more attention, and the patch panel is often regarded as a dispensable equipment in the integrated wiring project. Many small network constructions and even integrated No patch panel is used for wiring. Therefore, in the construction of the network system, the selection and installation of the patch panel often appear to be irregular and unreasonable. So, if you want to solve this kind of problem, you need to recognize the importance of the patch panel. Below, this article will mainly show the role of the patch panel in the network integrated wiring and how to install it correctly.


1. What is network integrated wiring? With the continuous upgrading of network products such as servers and switches, in order to save more space, the size of network products has become smaller and smaller, and the number of network products accommodated in data centers is increasing. Therefore, , The network integrated wiring technology came into being. Network integrated wiring is a modular, information transmission channel within a building or between building groups. It is composed of transmission media, patch panels, connectors, sockets, plugs, adapters and integrated wiring cabinets. It is practical, flexible, expandable and open. It can meet the large-capacity and high-speed internal transmission of data, images, and multimedia information, and it can also be connected to an external communication network to achieve the characteristics of flexible use,convenient expansion, simple management, and easy maintenance.


2. the advantages of network integrated wiring According to the current national standards and norms of our country, the advantages of integrated wiring are mainly reflected in the following aspects. 1. The overall wiring method is adopted, which can carry out unified wiring for each system, which greatly improves the safety and cost-effectiveness of the computer network integrated wiring system.


3. The role of patch panels in network integrated wiring 1. Patch panels can facilitate network management, improve management efficiency, and reduce the occurrence of network failures. 2. The patch panel is the most important component in the management subsystem of the integrated wiring system. It is the hub that realizes the cross connection of the vertical trunk line and the horizontal wiring subsystem, and is the bridge between the network cable and the network equipment. 3. The network patch panel can solve the damage of the switch port caused by multiple plugging and unplugging of the cable, and the network can be reconfigured quickly and flexibly by replacing the jumper. 4. The use of patch panels can make workplaces, equipment rooms and other places clean and orderly, and avoid the disorder of various cables. At the same time, standardized markings and connections make it clear to system administrators during maintenance and management, making it easier to change network lines and reducing labor costs.


4. How to install the patch panel in the network integrated wiring. Because of the neglect of the distribution frame in the network integrated wiring, the user may not have conducted in-depth research on the installation of the distribution frame. For this reason, the following is a modular distribution frame Take installation as an example to show you how to install the patch panel correctly.

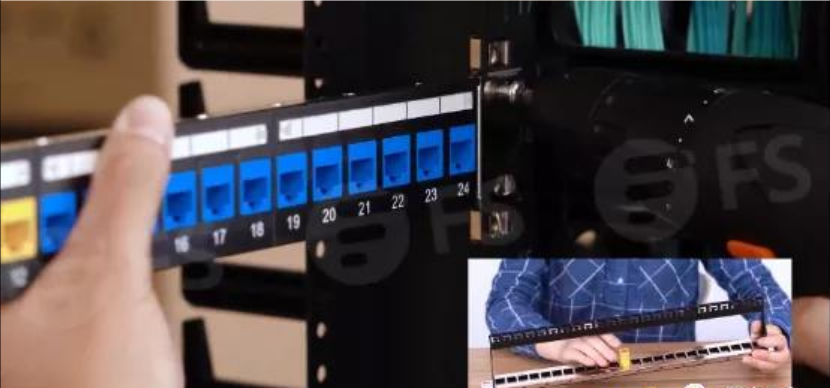

1. First fix the distribution frame in the cabinet with screws. Then arrange the cables and tie the cables to the edge of the distribution frame or the vertical rack of the cabinet with nylon ties.



1635484164(1)



2. Then choose whether to terminate the network cable from the back or the front according to the location of the cabinet and the ease of operation. If you choose to terminate from the front, you should first pull the cable through the patch frame hole and ensure that the cable length is moderate, neither too tight nor too long, and then push the network cable into the patch frame hole and lock it.




d97698f023bac1619f9d1354773d6b8

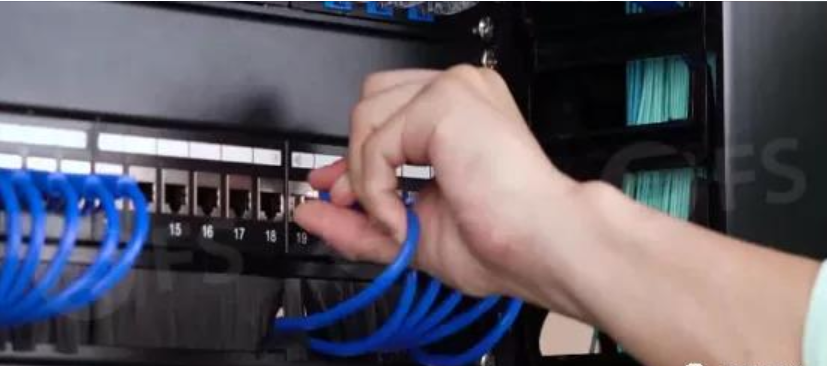

3. If you choose to terminate from the back, choose a moderate length of the cable according to the integrated wiring standard, and then push the network cable into the metal card in the order of the numbers on the back of the module.




1a0d279361e4d155d27dd454674a1a8

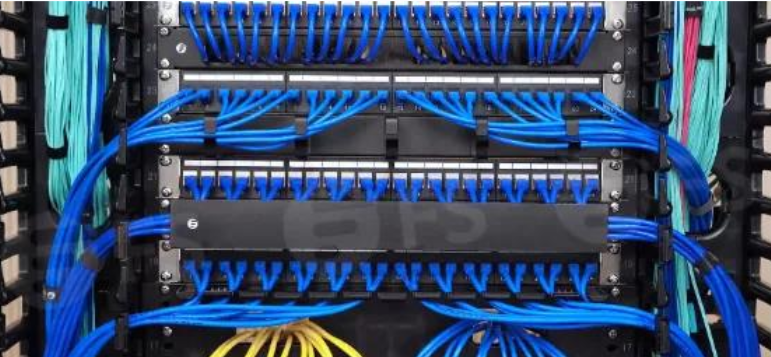

4. When connecting the wire pair, it must be done in numerical order and color marking, and press the wire pair into the wiring module with a wire bonding tool. After the wire pair is terminated, pay attention to arranging the cables neatly and binding them on the cable holder to prevent the cables from falling and slack. Finally, paste or insert the label filled with the uniform code into the panel of the wiring module.




1635484321(1)



Summary With the popularization of the Internet, more and more data center constructions and comprehensive wiring technologies are becoming more and more extensive. In the integrated wiring of the network, the installation and configuration of network core equipment such as switches, routers, etc. are often paid more attention, and the patch panel is often regarded as a dispensable equipment in the integrated wiring project, many small network constructions and even integrated wiring Patch panels are not used at all times. Therefore, in the construction of the network system, the selection and installation of the patch panel often appear to be irregular and unreasonable. So, if you want to solve this kind of problem, you need to recognize the importance of the patch panel. Below, this article will mainly show the role of the patch panel in the network integrated wiring and how to install it correctly.
