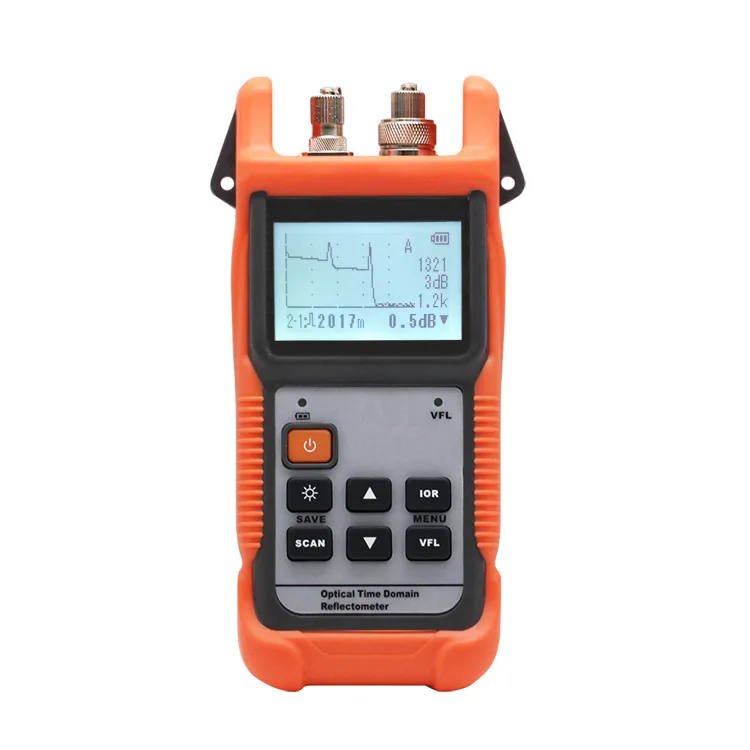

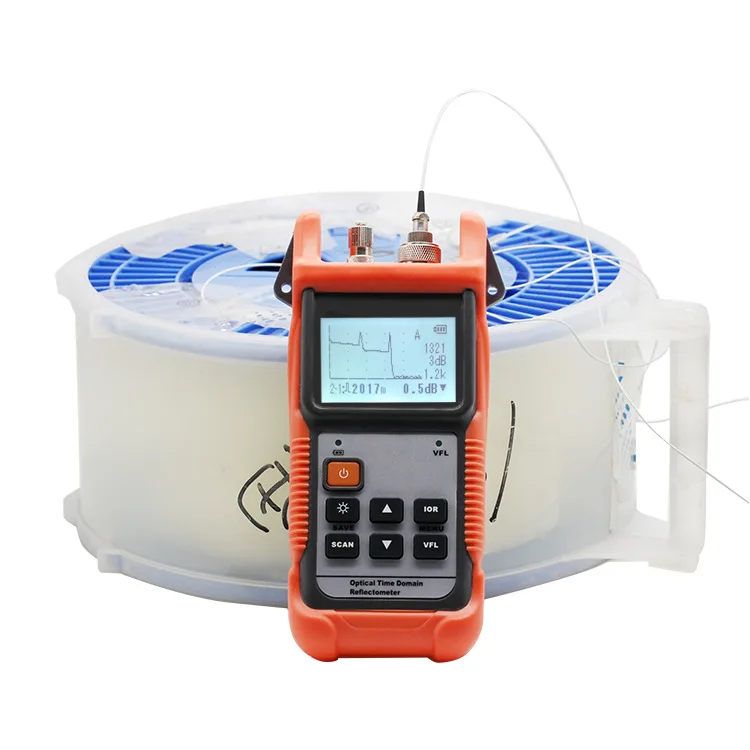

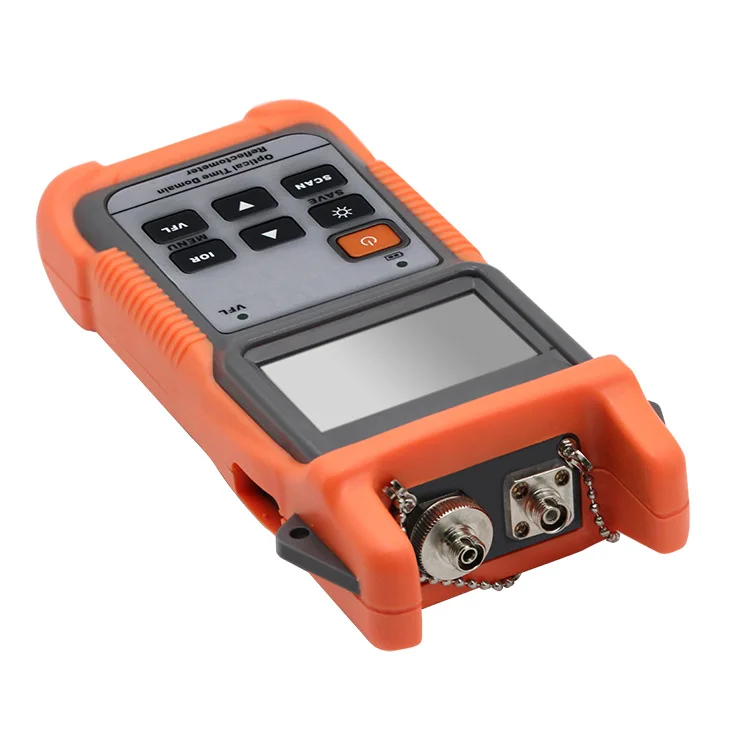

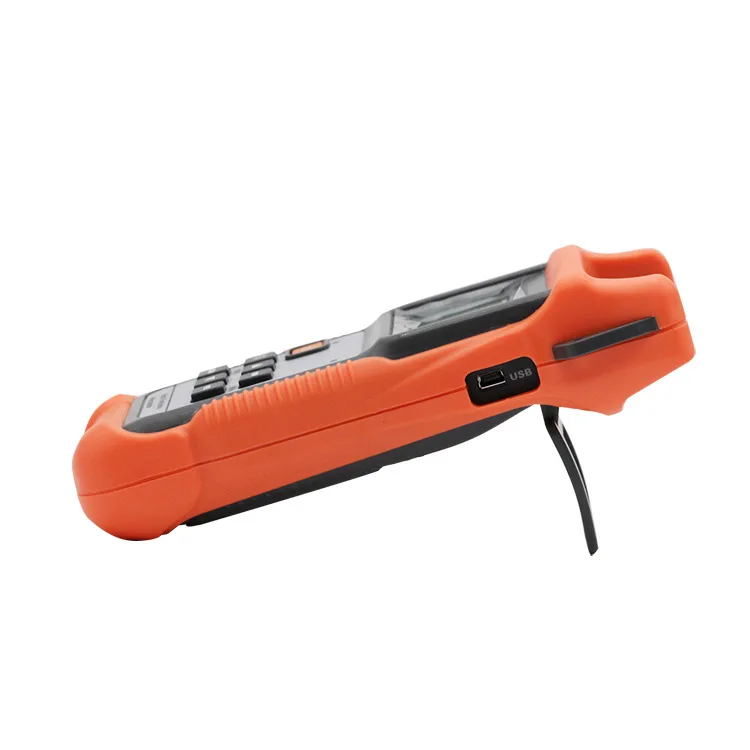

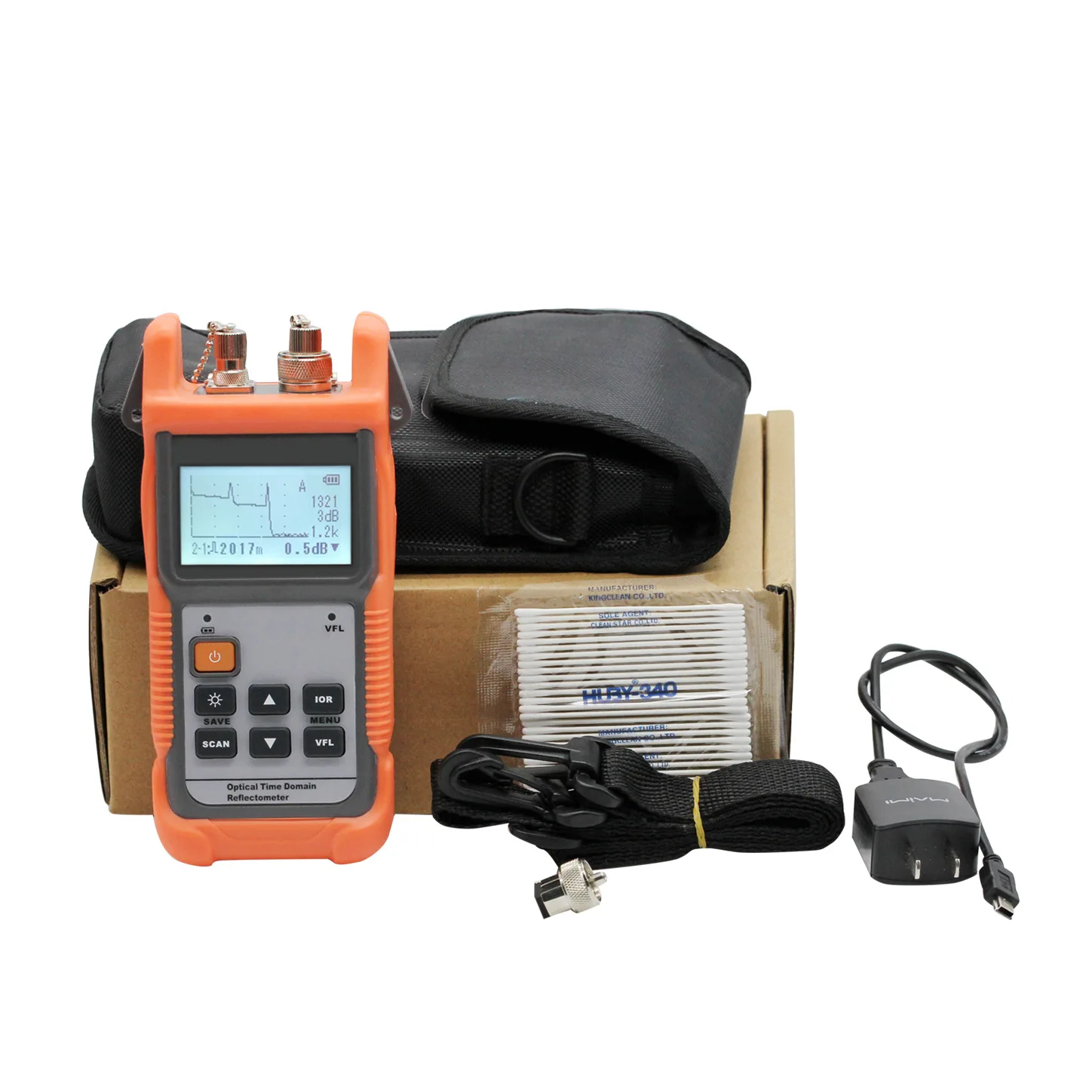

MT-86112 Optical Fiber Cable Obstacle Finder Simple Optical Time Domain Reflectometer Cable Breakpoint Tester OTDR

OTDR is a precision photoelectric integrated instrument made of Rayleigh scattering and Fresnel reflection backscattering when light is transmitted in an optical fiber. It is widely used in the maintenance and construction of optical cable lines. Among them, measurements such as fiber length, attenuation of optical fiber transmission, joint attenuation, and fault location can be performed.
Availability:
Quantity:
Inquire Add to Basket

  • MT-86112

MT-8611 FTTH OTDR 1310/1550nm 28/26 dB otdr

Color:
black
dynamic range 12db
Schnittstellenadapter FC/PC
pulse width ANTO,10ns,20ns,50ns,100ns,200ns,500ns,

1μs, 1.5μs,2.5μs
Maximum sampling number 6000
Power of red source ≥1mW
Display resolution 0.01db
Minimum sampling interval 1m
Battery lithium battery
model MT-86112

MT-8611 FTTH OTDR 1310/1550nm 28/26 dB otdr

9322789496_1423527563.jpg9341957770_1423527563.jpg9356074775_1423527563.jpg9375464741_1423527563.jpg9375491118_1423527563.jpg
