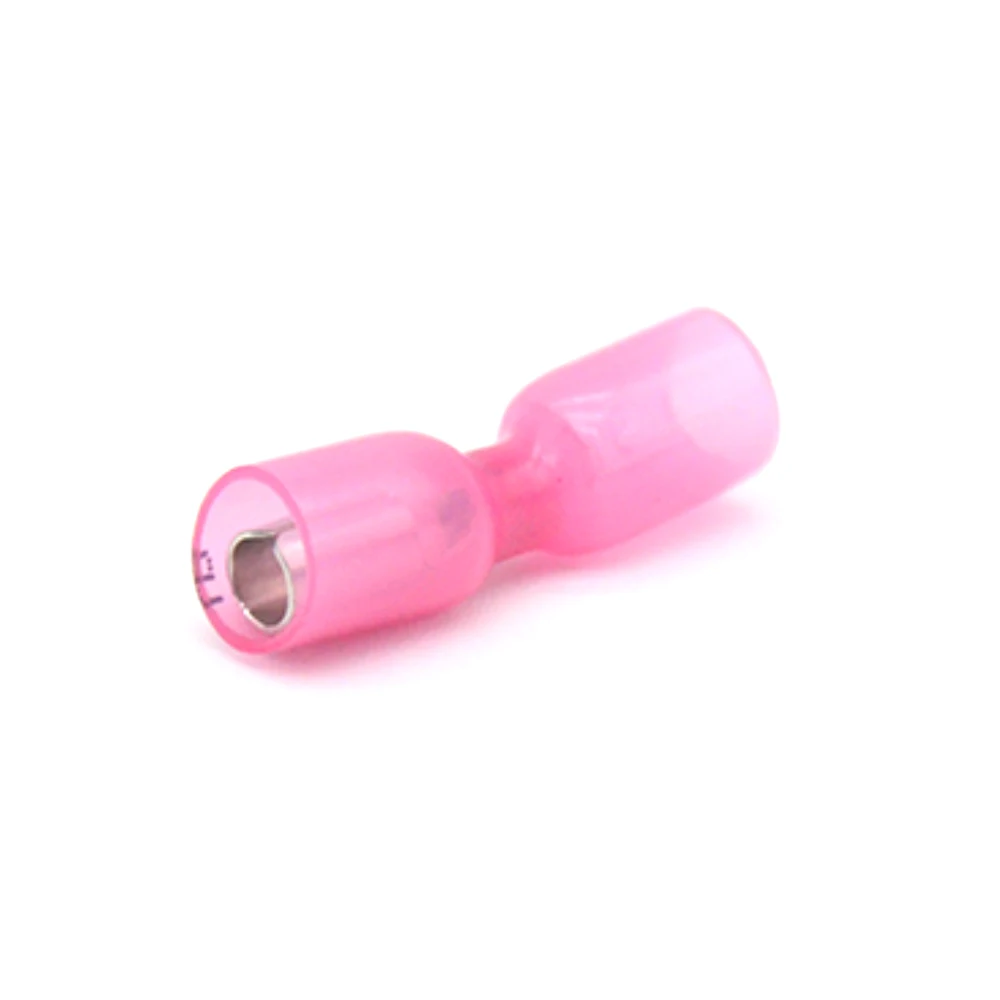

MT-3825 Heat Shrinkable FDFN2-250 Plug Spring Cold Crimp Terminals Male And Female Nylon Butt Terminal Nylon Insulated Terminal

The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.
Availability:
Quantity:


Name :

Connector

Country of origin :

Ningbo,China

Application:

Network and Telecommunication

End Material :

Brass

Applicable Wire Diameter:

22-16AWG;16-14AWG;12-10AWG

Material:

Nylon

Working Frequency:

High Frequency


1.jpg2.jpg3.jpg4.jpg5.jpg6.jpg7.jpg8.jpg9.jpg10.jpg11.jpg12.jpg13.jpg14.jpg15.jpg16.jpg17.jpg18.jpg19.jpg


.jpg
Wire connectors includes a variety of butt splices and inline tap splices.The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to each wire. A "live-spring" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.

The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.

Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
