| Quantity: | |
|---|---|

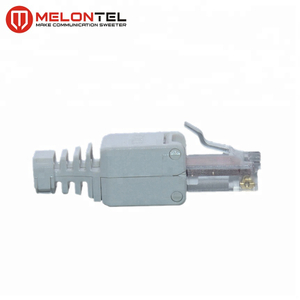

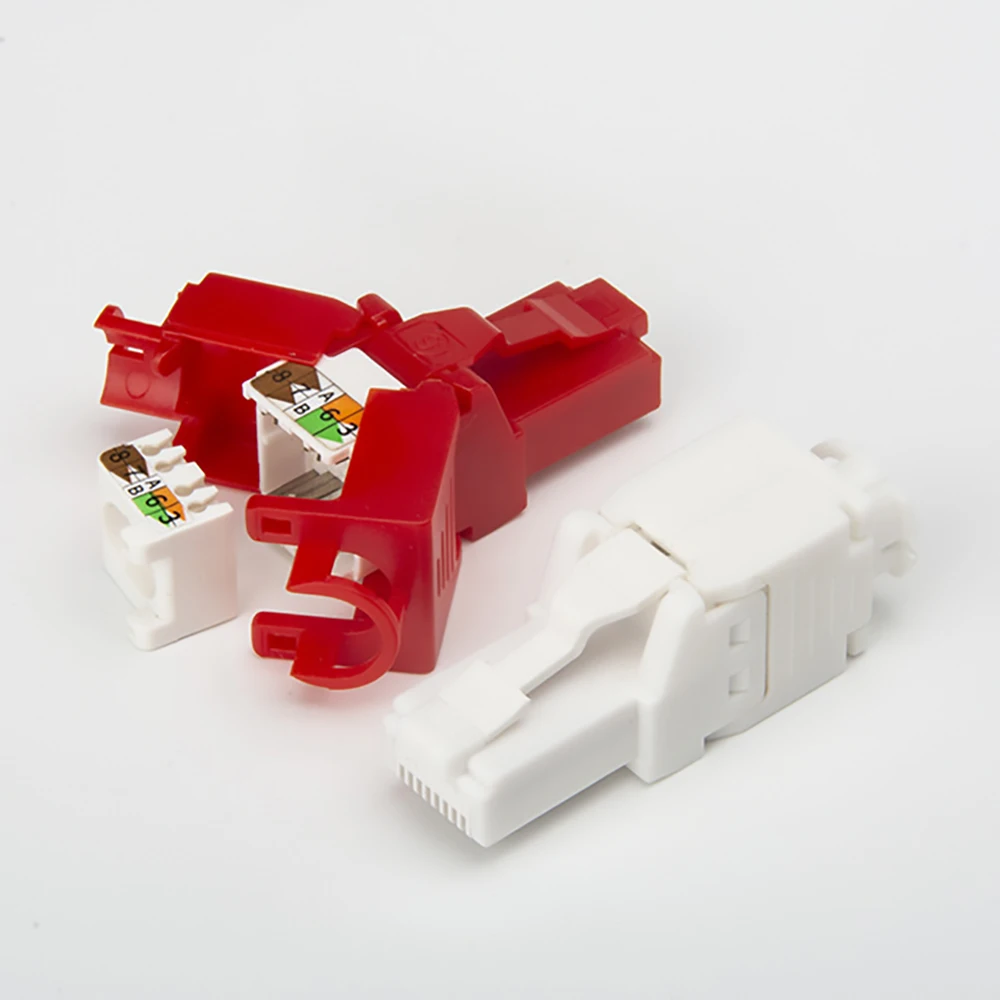

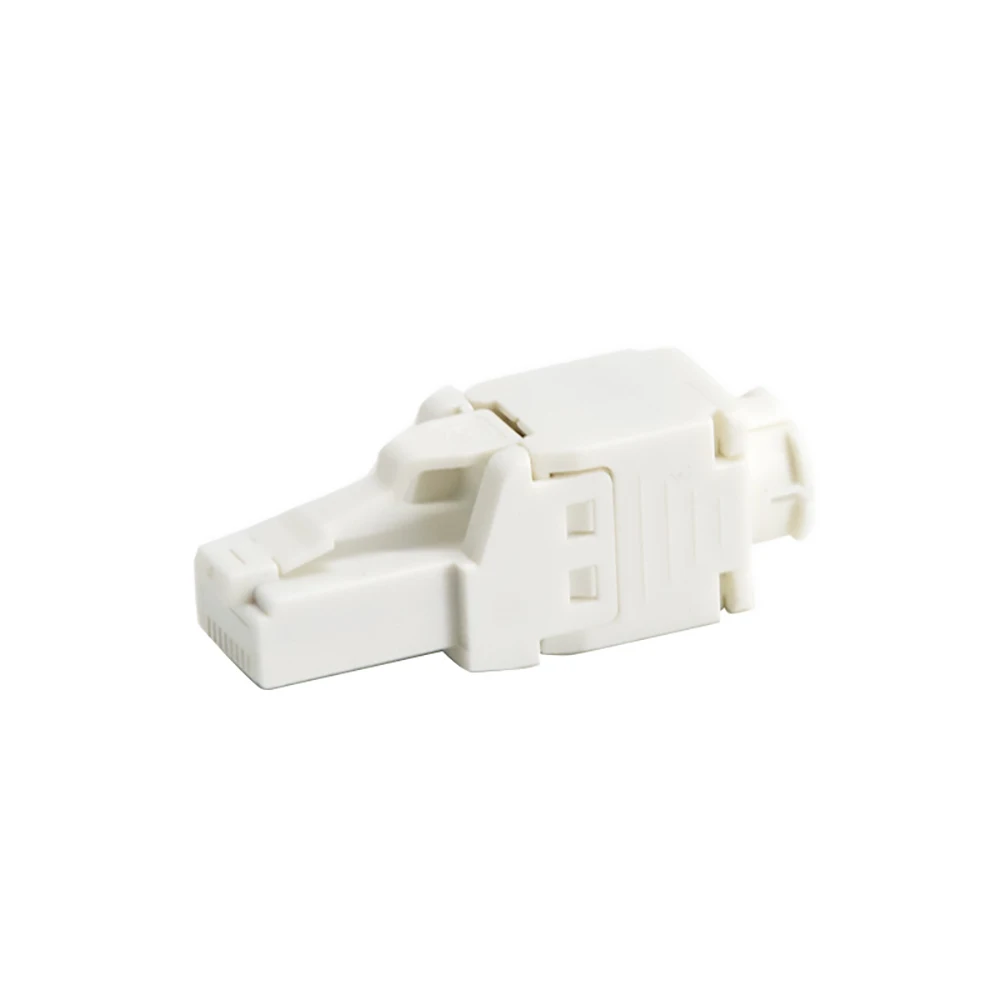

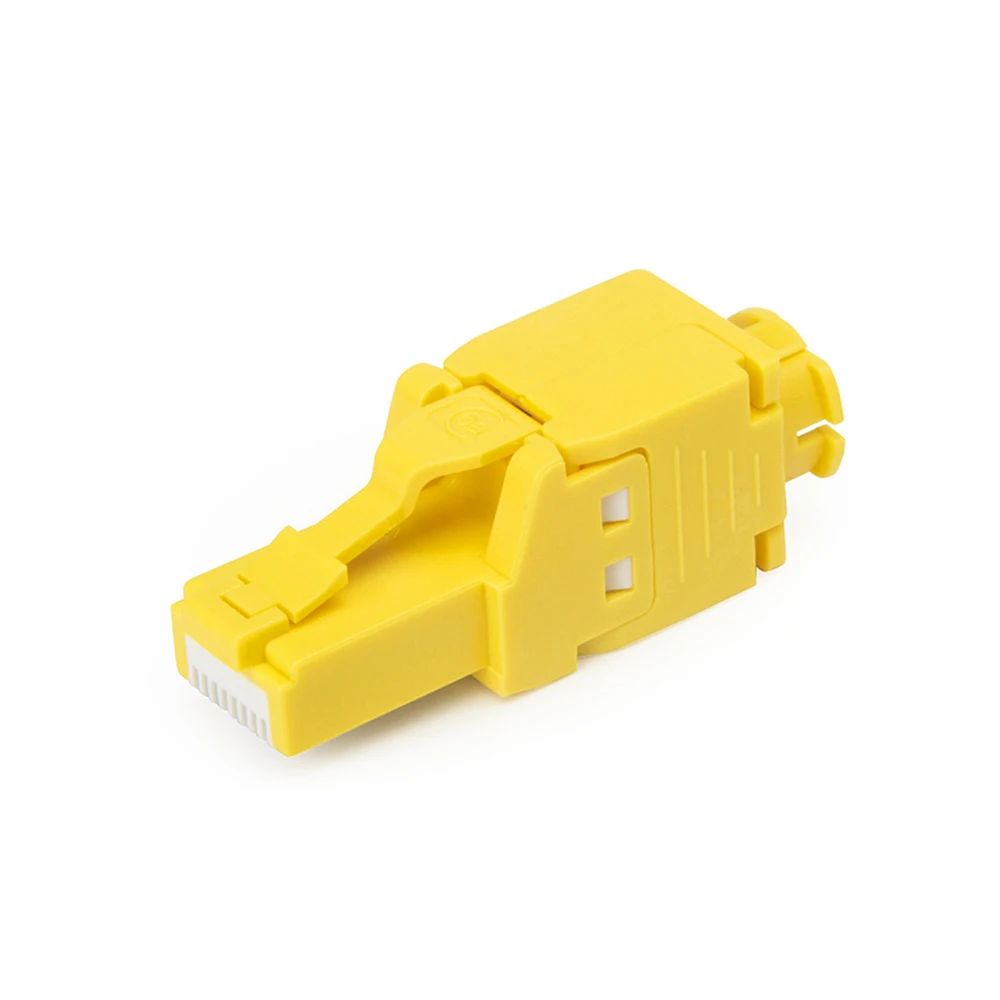

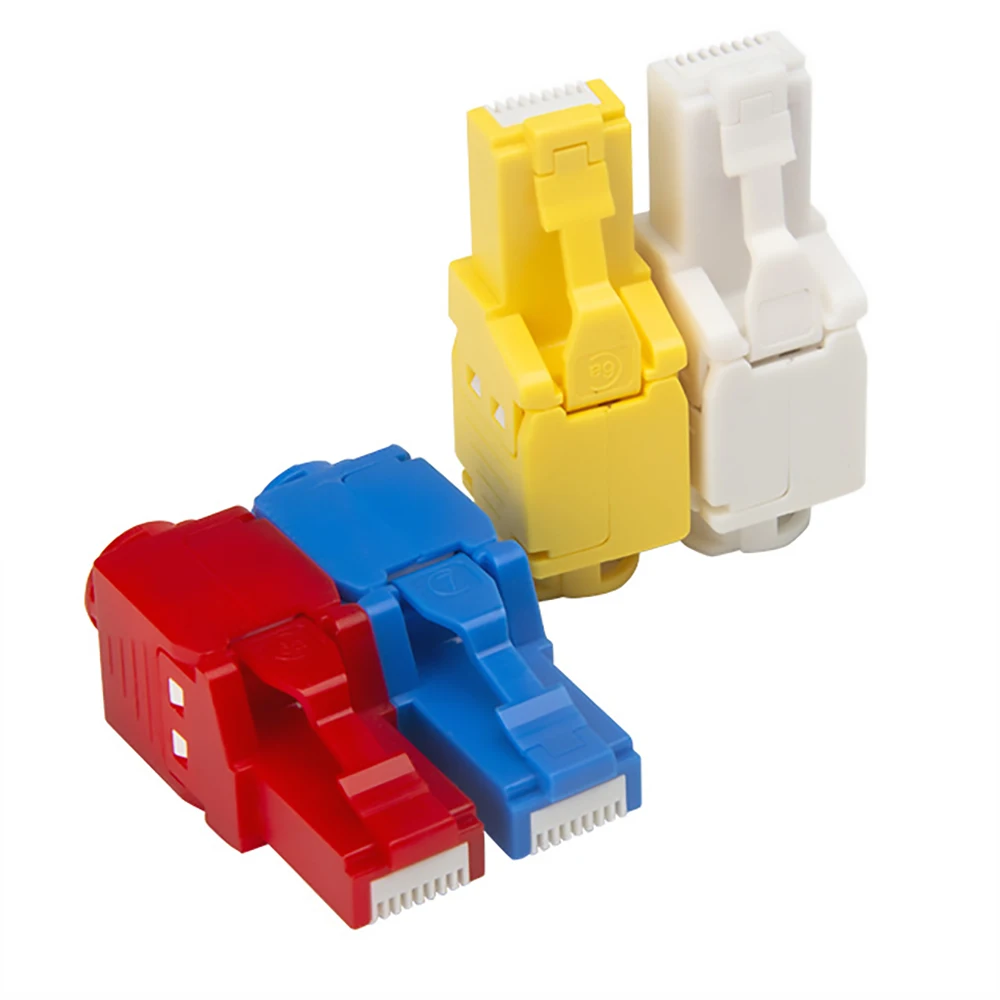

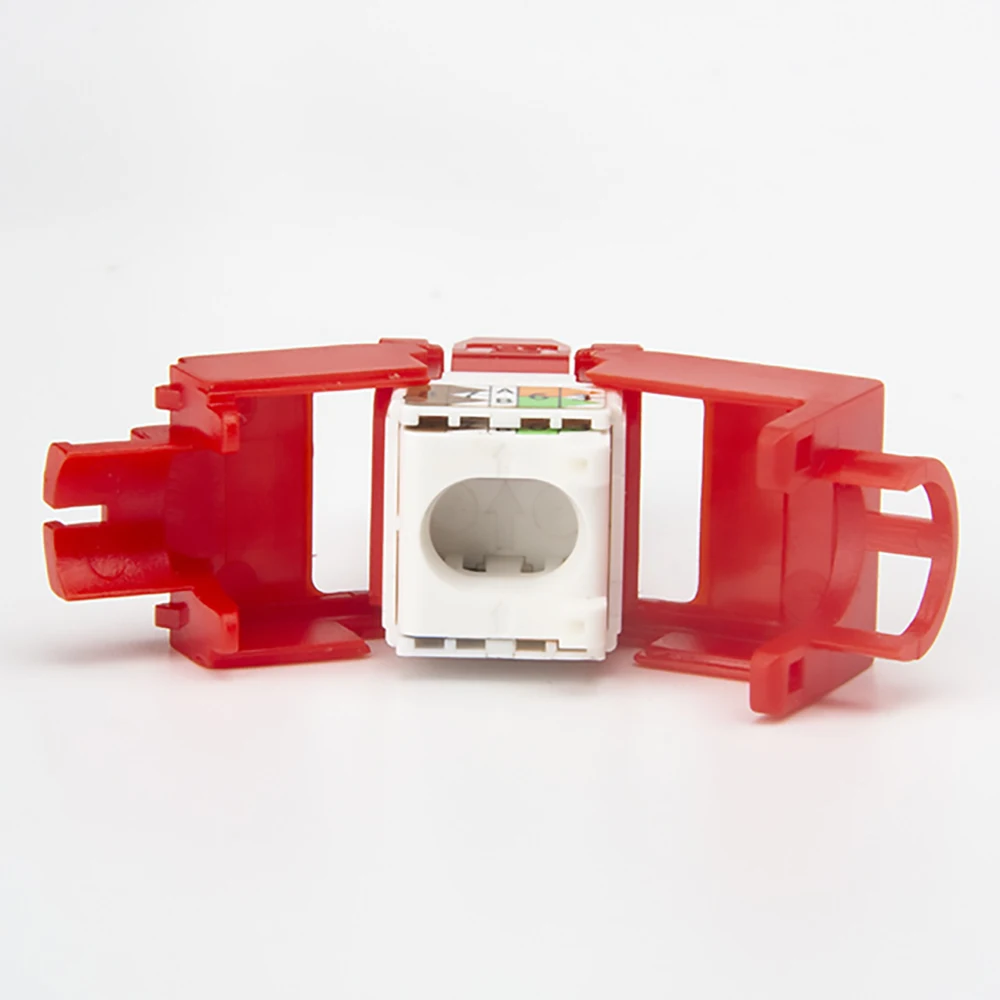

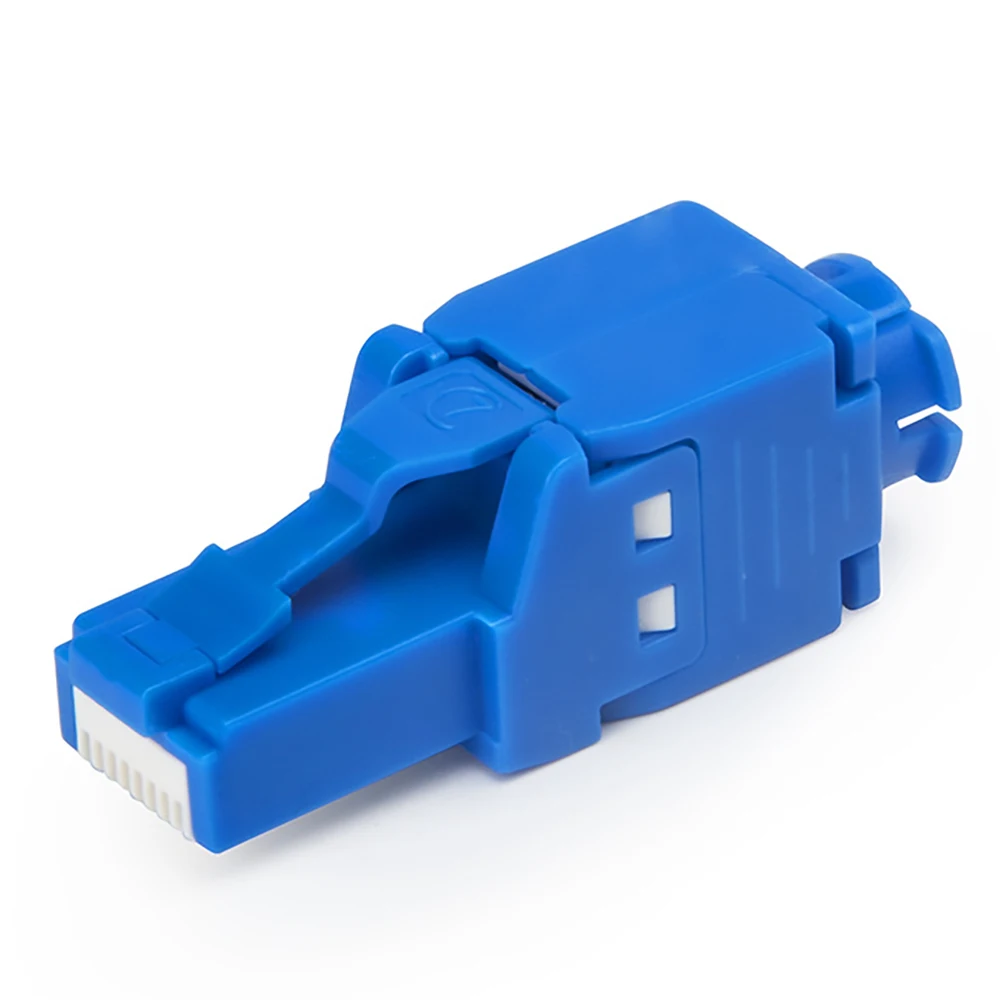

Name : | RJ45 Modular Plug |
Country of origin : | Ningbo,China |
Type : | 8P8C |
Gender : | Male |
Color : | Colorful |
Gold Plated : | 30U |
Quick Detail:
1. Position 4P,6P,8P,10P
2. Contact 4C,6C,8C,10C
3. Blade type E/Y/Z
4. Gold Thickness:03,06,15,30,50µ''
5. PC Material:94-V0 ,94-V2
6. Shielded,Unshielded
Description:
Contact blade:
E Blade :2 prong fits stranded wire only
Y/Z Blade: 3 prong fits both stranded and solid wire
Gold Plating:
3µ''=0.07µm,6µ''=0.15µm,15µ''=0.38µm,30µ''=0.76µm,50µ''=1.27µm
Cat5e,Cat.6,Cat.6A plugs meet the requirements of higher data transmission speed
UL certificated
Applications:
Insert the proper diameter lan cable and telephone cable,to make the patch cords for telephone communication and network commnication,easy connection and high performance.
