| Quantity: | |
|---|---|
MT-1096
Brand Name: | OEM |
Model Number: | MT-1096 |
Operating/Storage Temperature: | -40 to +70°C |
Fiber types: | YOFC class a optical fiber G652D or as your need |
Certification: | ISO9001/CE/RoHS |
Fiber count: | 4-288 Cores |
Jacket Material: | PE/ LSZH |
Description

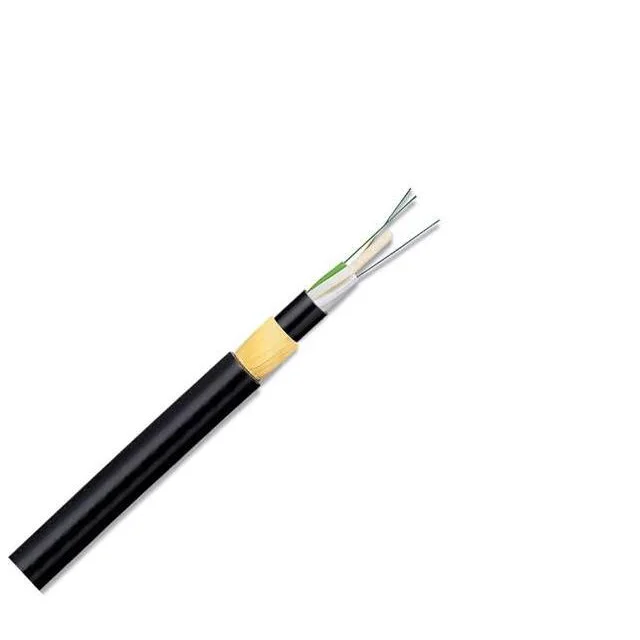

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose
tube made of high modulus plastics. The tubes are lled with a water-resistant
lling compound. The tubes (and llers) are stranded around a FRP (Fiber
Reinforced Plastic) as a non-metallic central strength member into a compact
and circular cable core. After the cable core is lled with lling compound, it is
covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid
yarns are applied over the inner sheath as strength member, the cable is
completed with PE or AT(anti-tracking) outer sheath.
Characteristics
Can be installed without shutting o the power
Excellent AT performance. The maximum inductive
at the operating point of AT sheath can reach 25kV
Light weight and small diameter reducing the load
caused by ice and wind and the load on towers and
backprops.
Large span lengths and the largest span is over
1000m
Good performance of tensile strength and
temperature
The design life span is over 30 years
Application: Self-supporting
Technical Parameters
