Optical transmission hardware integration one-stop service provider
 |
| Quantity: | |
|---|---|

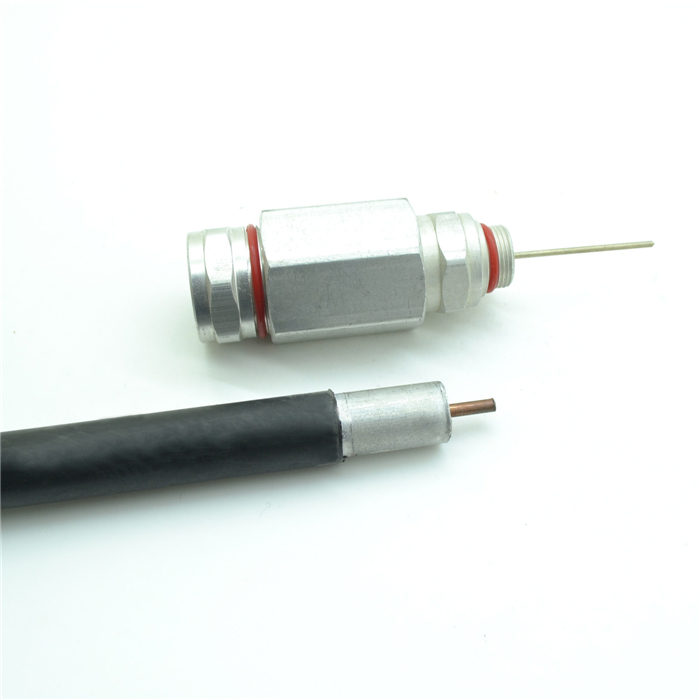

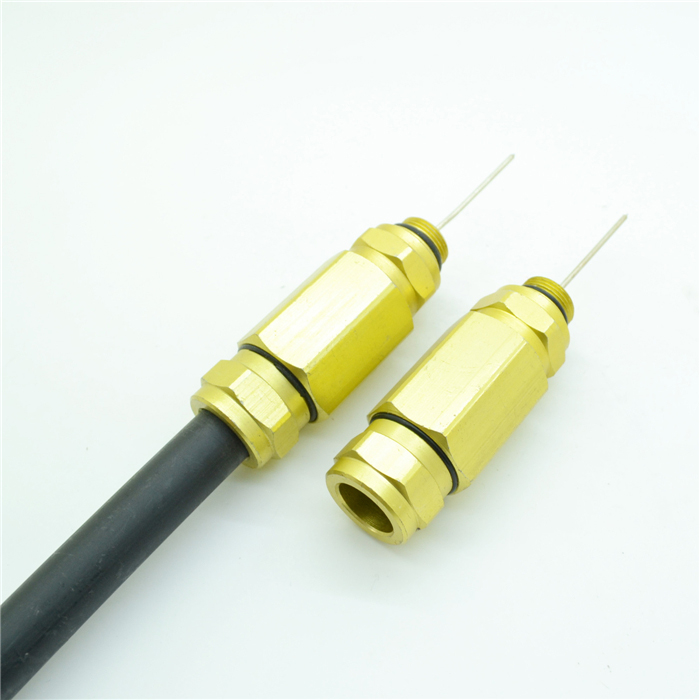

MT-7102
Place of Origin:Zhejiang | Carton:40*30 *25 cm |
Brand Name:OEM | Packing:5pc/poly bag，40bag/ctn |
Model Number: | MT-7102 |
Impedance: | 75Ohm |
Material: | Copper |
Application: | RF |
Function: | waterproof |
Temperature Range: | -40 to +60°c |
Specifications
Frequency range: | 5-1000MHz | Withstand voltage: | AC 1500V | |
Insertion loss | ≤0.08（0.05）db（5-300MHZ） | Insulation resistance | ≥1000MΩ DC 500V | |
≤0.18（0.1）db（300-1000MHZ） | Damp heat steady state | Withstand voltage | ≥800V（40℃±2℃；93%±3%，24h） | |
Reflection loss | ≥22（28）db （5-300）MHz | Insulation resistance | ≥250MΩ（40℃±2℃；93%±3%，24h） | |
≥20（26）db （300-1000）MHz | High-temperature insulation resistance | ≥500MΩ（85℃±5℃；16h） | ||
Contact resistance | ≤5MΩ | Low temperature insulation resistance | ≥1000MΩ（-40℃±5℃，2h） | |
Shielding attenuation | ≥90 | |||
