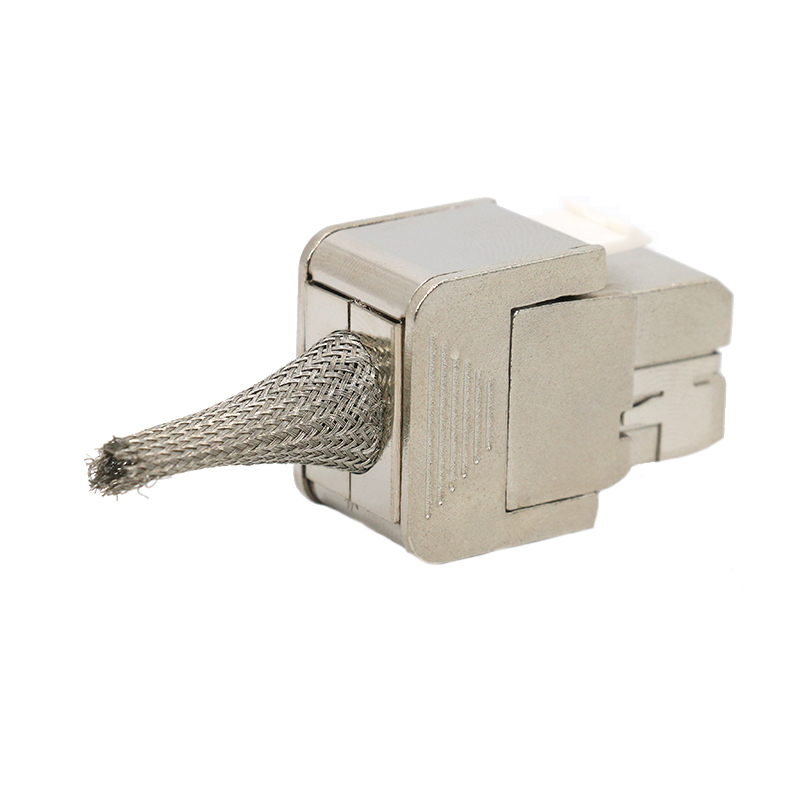

MT-5205-2 3 M TYPE CAT6A FTP RJ45 KEYSTONE JACKS WITH DUST COVER TOOLESS

Network modular are also called keystone jack, Modular jack. They can be used in the telephone and network cabling system. You can find them at home, office, shipping mall, almost anywhere. And they are be used in the face plate, patch panel, surface box and so on.
One side of the module has a female connector for patch-cord connection, the other side of the module has an IDC-type (insulation displacement contact). Normally, we have the RJ11 and RJ45, two kind of female port . And the IDC always be 110 IDC, Krone IDC, Dual IDC and toolless keystone Jack.
We also welcome OEM keystone Jack for different customers from different country.
Grade:
Availability:
Quantity:
  • MT-5205-2

  • MELONTEL



Place of Origin:

Zhejiang

Brand Name:

OEM

Model Number:

MT-5205-2

Type:

CAT6A

Gold Plating:

3U~50U

Pin:

8 PIN

Material:

Zinc alloy

Line sequence:

T568A/T568B

Certificate:

UL ROHS CE

Contract resistance(max):

100mΩ

Insulation resistance (min)

500mΩ

Operation temperature:

-20-70℃







 234561





Network modular are also called keystone jack, Modular jack. They can be used in the telephone and network cabling system. You can find them at home, office, shipping mall, almost anywhere. And they are be used in the face plate, patch panel, surface box and so on.

       This series keystone jacks work together with high speed cables, cords and panels to provide performance beyond proposes Category 6          standards.

We also welcome OEM keystone Jack for different customers from different country.



Features and benefifits



Available in Cat6, T568A/B wiring, meet or exceed TIA/EIA Cat6 requirements.

Housing: high temperature thermoplastic

Compact jack design, 8 positions and 8 conductors

Contact: phosphor bronze, phosphor bronze with 6 to 50u” gold plate

Accept 22-26AWG solid with a insulation diameter of 0.4-0.6 mm

Easy to be terminated, low attenuation loss and high return loss

High reliability and superior performance

Available in different colors
