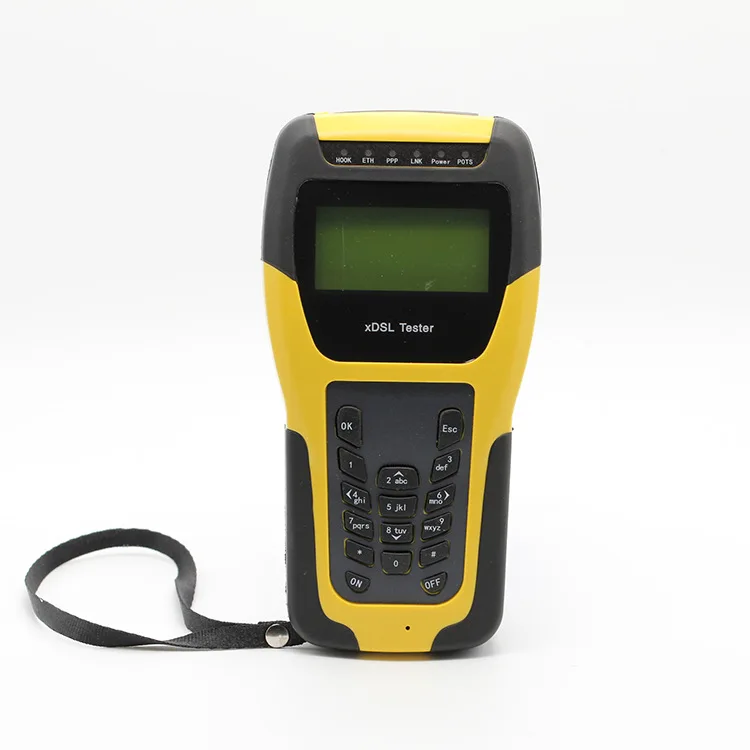

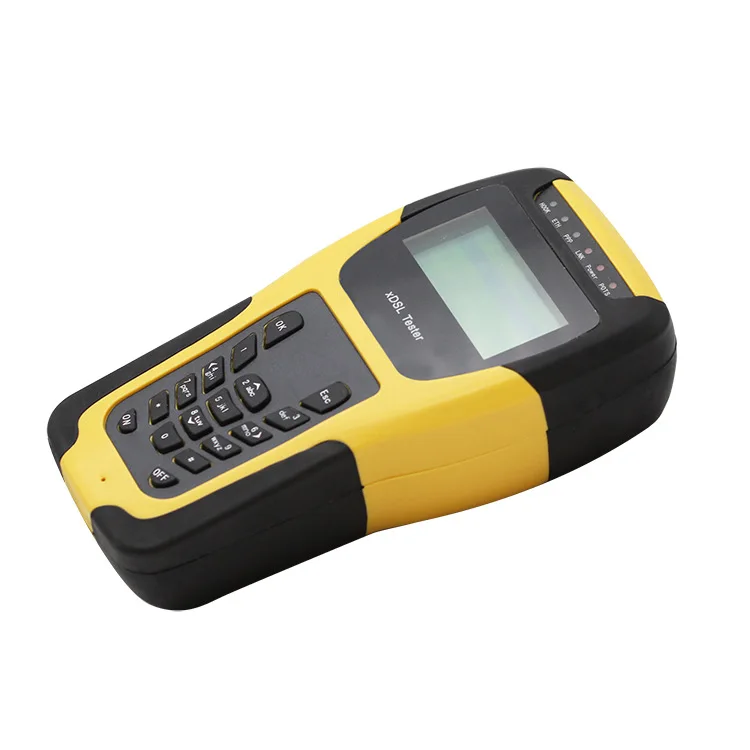

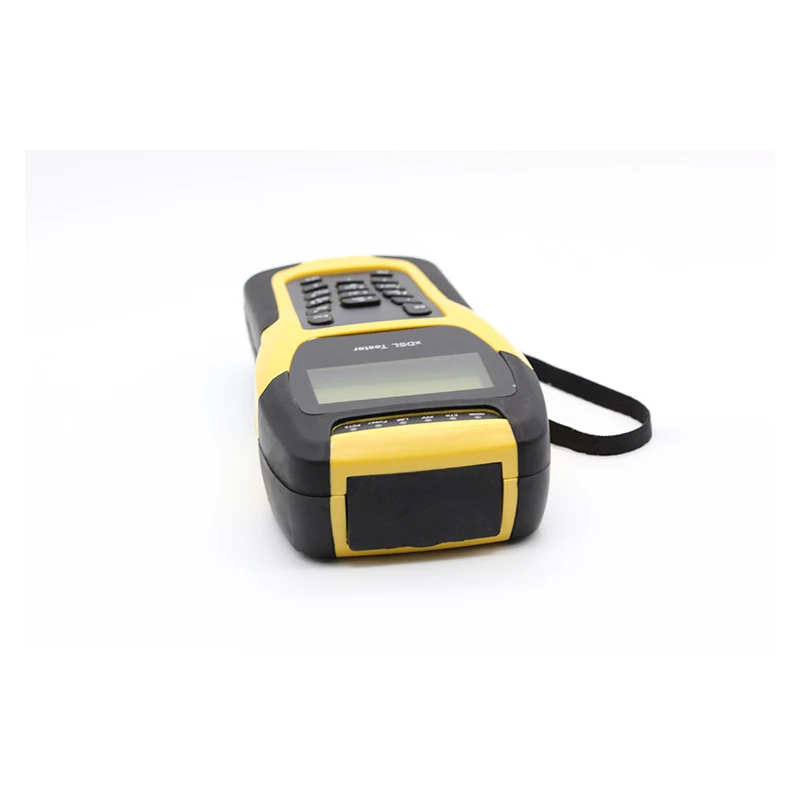

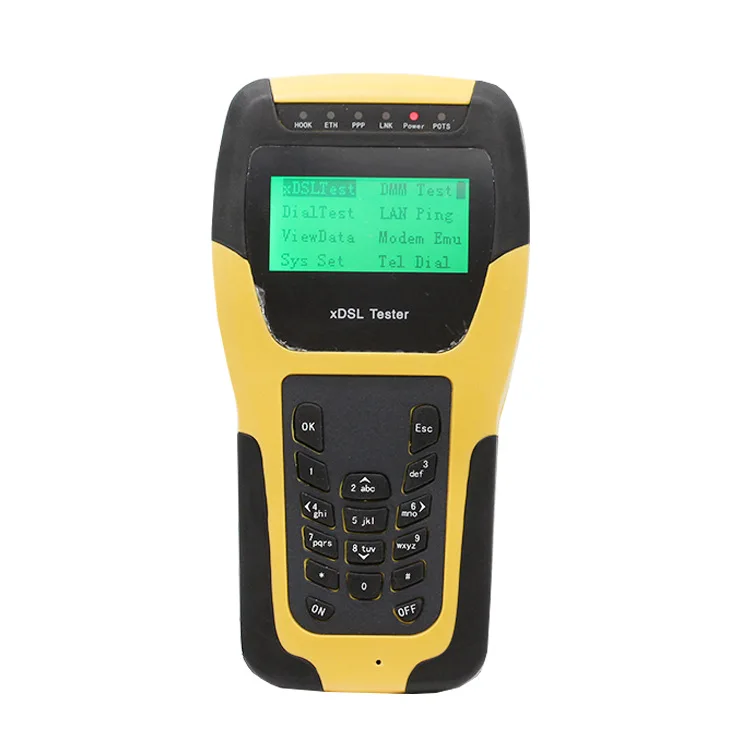

MT-8638 VDSL ADSL TesterInstallation And Maintenance Tools Cable Tester

Quantity:
  • MT-8638
  • MELONTEL

MT-8611 FTTH OTDR 1310/1550nm 28/26 dB otdr





Color:
green
splice rj11  rj45
ADSL2+
Standards ITU G.992.1(G.dmt),ITU G.992.2(G.lite),ITU G.994.1(G.hs),
ANSI T1.413 issue#2,ITU G.992.5(ADSL2+)Annex L
Up channel rate 0~1.2Mbps
Down channel rate 0~24Mbps
Up/Down attenuation 0~63.5dB
Up/Down noise margin 0~32dB
Output power Available
Error test CRC,FEC,HEC,NCD,LOS
Display DSL connect mode Available
Display channel bit map Available
ADSL
Standards ITU G.992.1(G.dmt),ITU G.992.2(G.lite),
ITU G.994.1(G.hs),ANSI T1.413 Issue#2,
Up channel rate 0~1Mbps
Down channel rate 0~8Mbps
Up/Down attenuation 0~63.5dB
Up/Down noise margin 0~32dB
Output power Available
Error test CRC,FEC,HEC,NCD,LOS
Display DSL connect mode Available
VDSL2
Be compatible with ADSL2+,ADSL standard.
DSL line attenuation
DSL line noise margin
DSL line up/down channel speed(Inter/Fast mode)
DSL line up/down maximum rate
DMT sub channel bit number:0~15,and each sub channel frequency points
DSL line error number(CRC,HEC,FEC,LCD,OCD)
DSL line local output power
DSLAM information
Error Code Second
Impulse Noise Protection(INP)
Support 7 VDSL2 profiles:profile 8a,8b,8c,8d,12a,12b,17a
DMM Test
DC voltage(V): 0~400
AC voltage(V): 0~400
Loop resistance(Ω): 0~20000
Capacitance(nF): 0~1000
Insulation resistance(MΩ): 0~50
General Specification
Power supply Internal Rechargeable 2800mAH Li-ion battery
Battery Duration 4 to 5 hours
Working temperature 0-40 oC
Working moisture 5%-90%
Dimensions 180mm*93mm*48mm
Weight: <0.5kg







MT-8611 FTTH OTDR 1310/1550nm 28/26 dB otdr

3958039413_1423527563.jpg3959913506_1423527563.jpg9653061392_1423527563.jpg9679162497_1423527563.jpg9701018543_1423527563.jpg



MT-8611 FTTH OTDR 1310/1550nm 28/26 dB otdr

MT-8611 FTTH OTDR 1310/1550nm 28/26 dB otdr


OTDR is a precision photoelectric integrated instrument made of Rayleigh scattering and Fresnel reflection backscattering when light is transmitted in an optical fiber. It is widely used in the maintenance and construction of optical cable lines. Among them, measurements such as fiber length, attenuation of optical fiber transmission, joint attenuation, and fault location can be performed.
