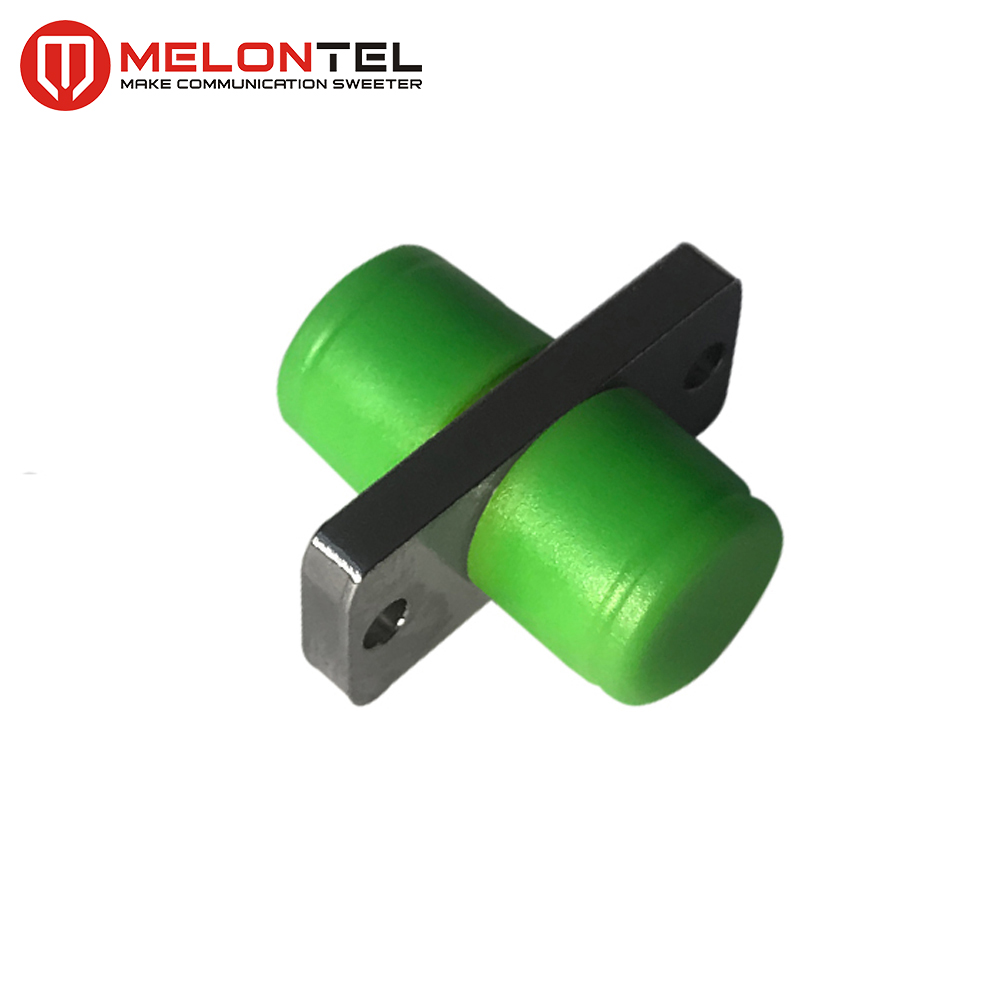

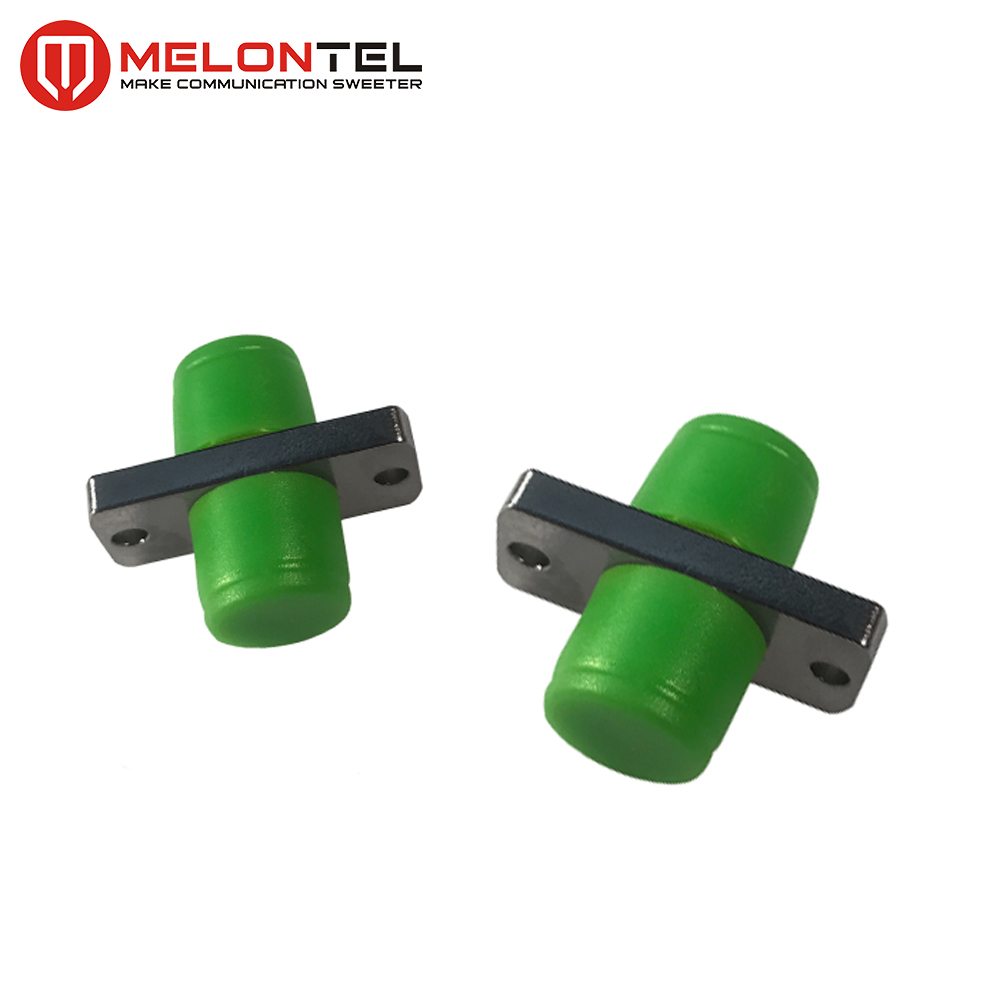

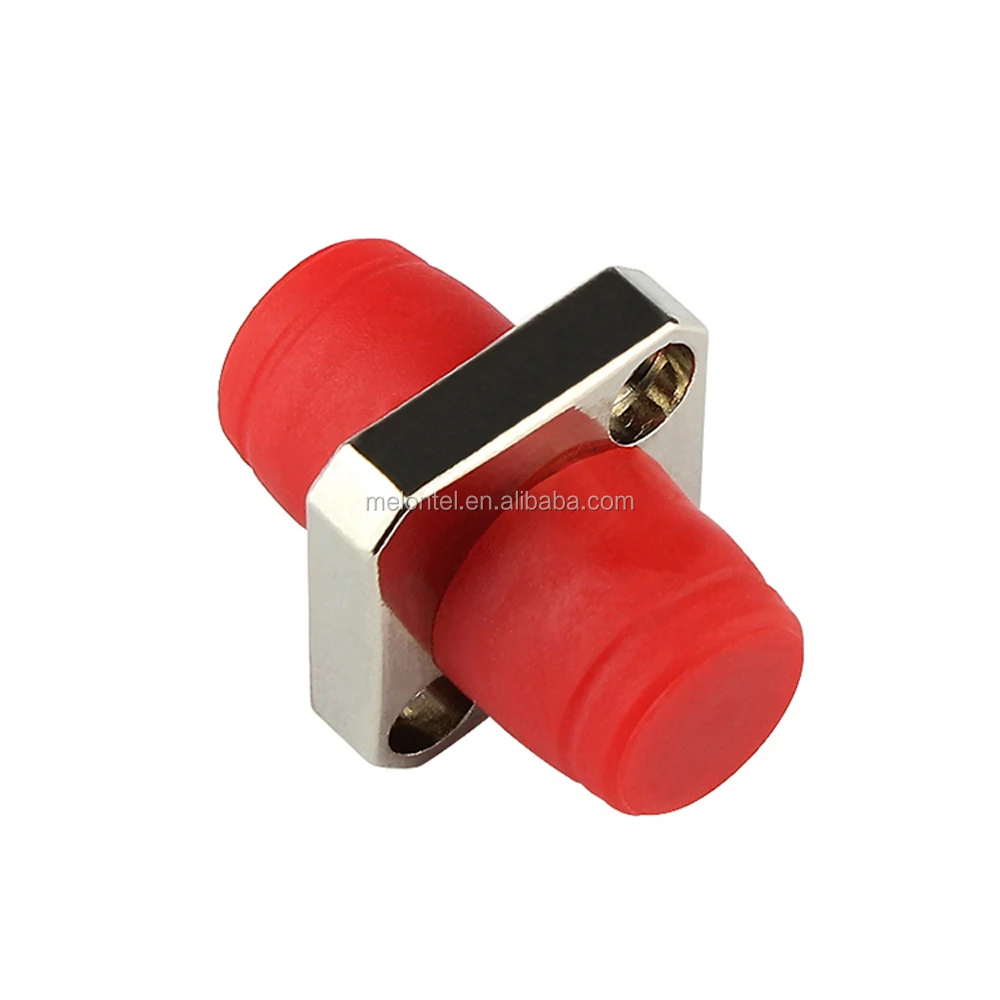

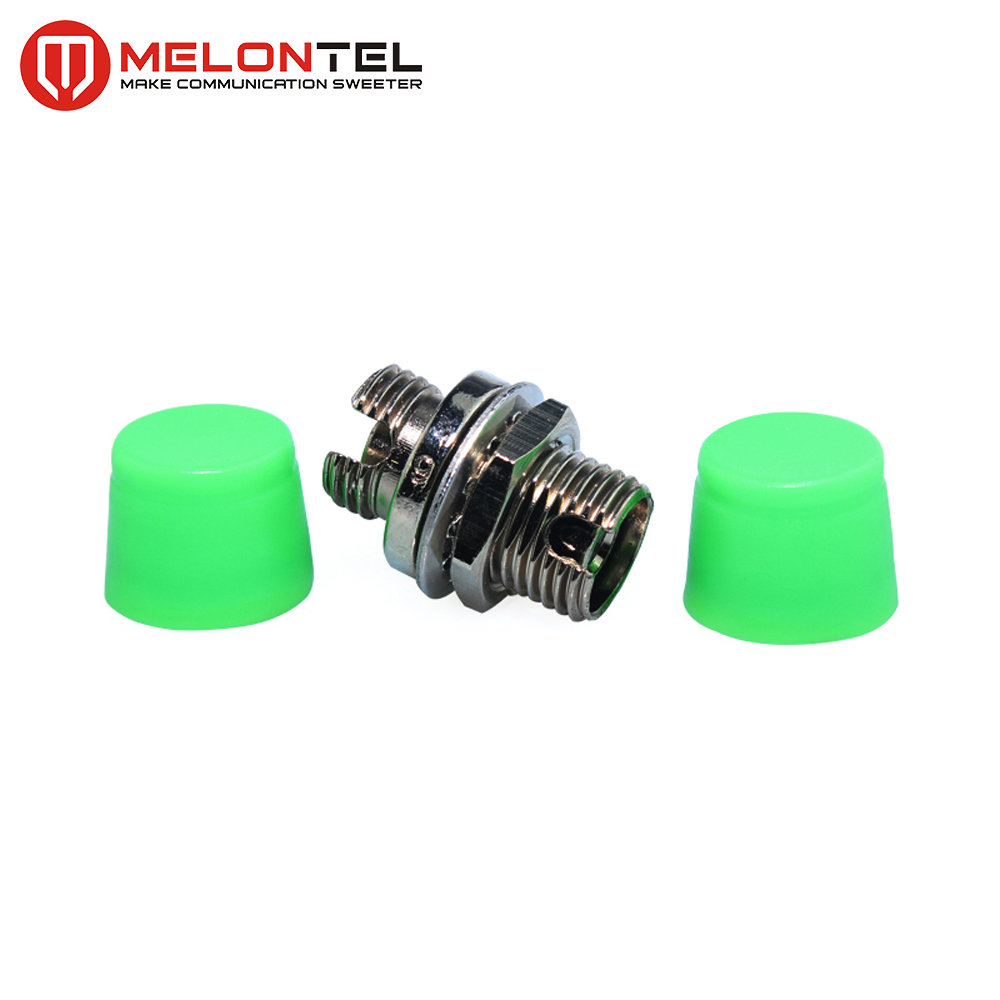

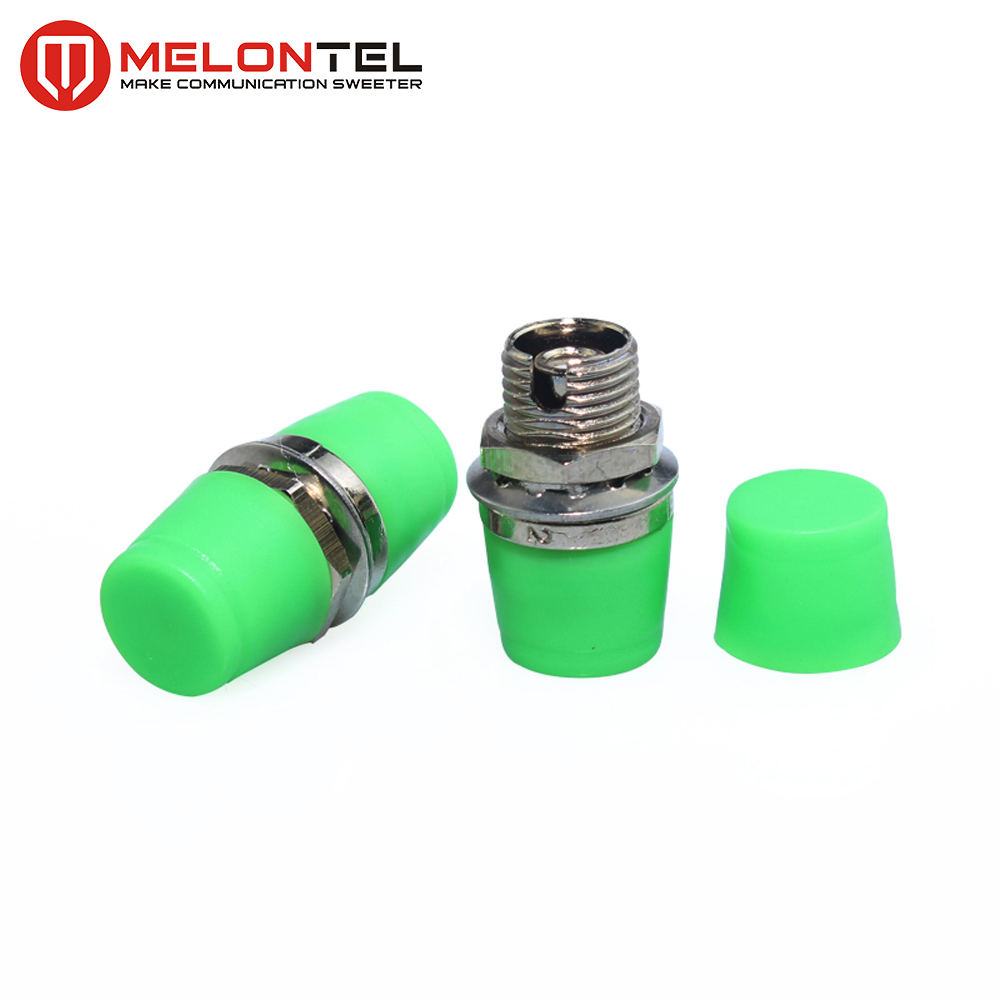

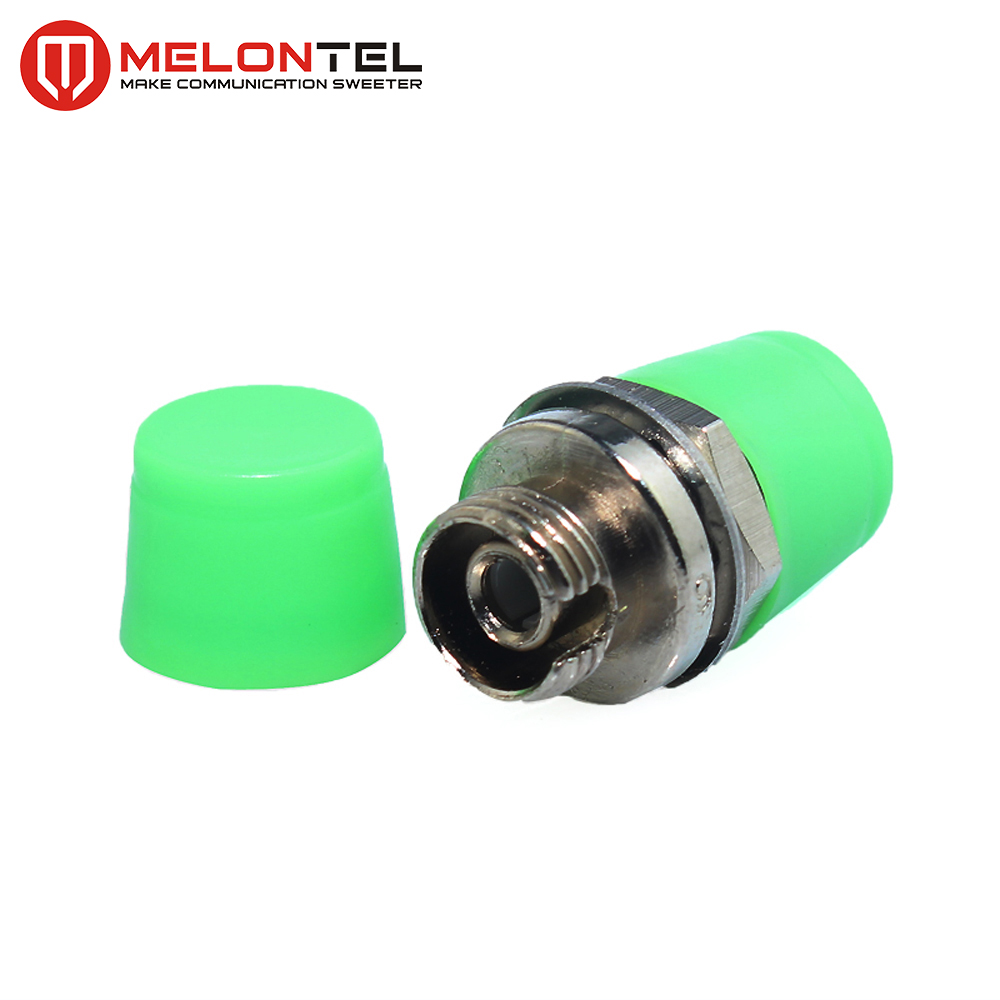

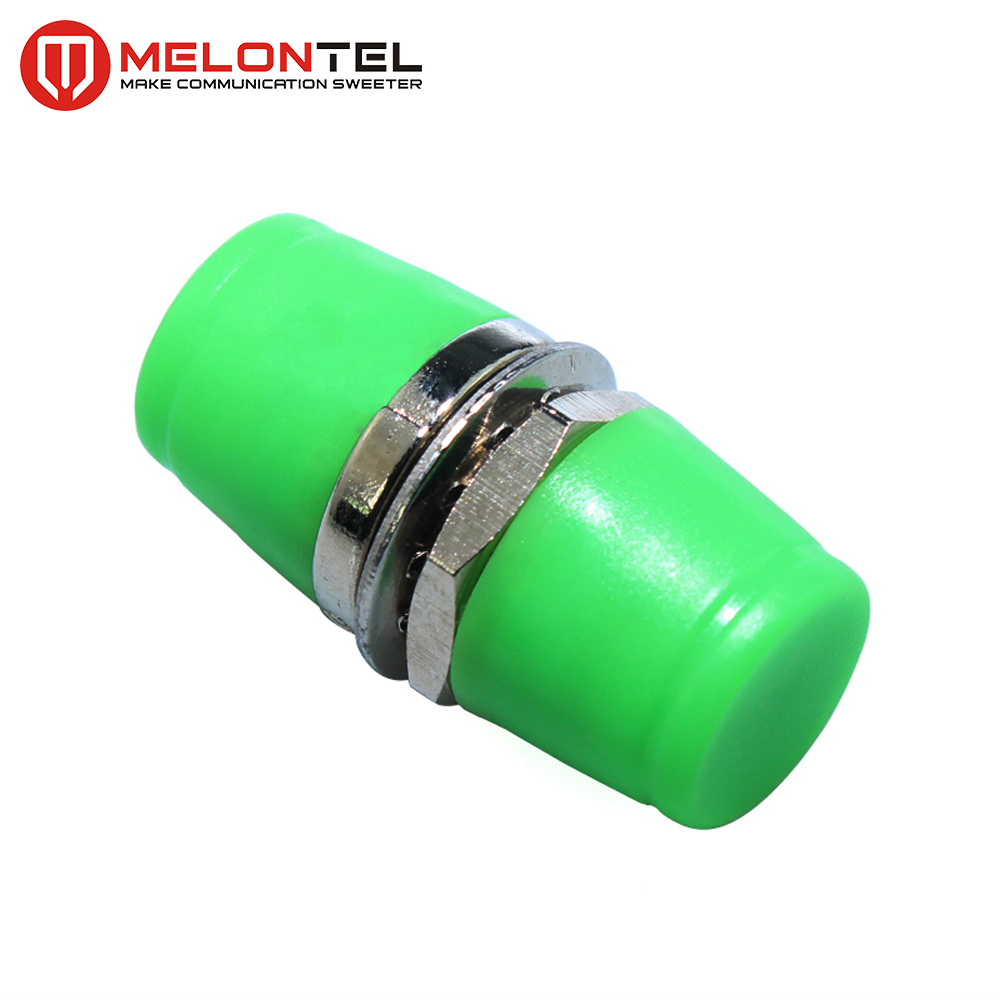

MT-1032-FC 1 Core D Type Square And Rectangle FC APC Adapter Coupler Fiber Optic Adaptor

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, E2000, MU,MT-RJ, MTP style fiber optic adapters for both multimode and single-mode fiber applications.

Size:
Quantity:
  • MT-1032-FC
  • Melontel




Name :

Fiber Optic Adaptor

Country Of Origin :

Ningbo,China

Color:

Red

Fiber Type:

Singlemode

Fiber Count:

Simplex

Connector Type:

FC/UPC  FC/APC

Insertion Loss:

≤0.2dB

Packing :

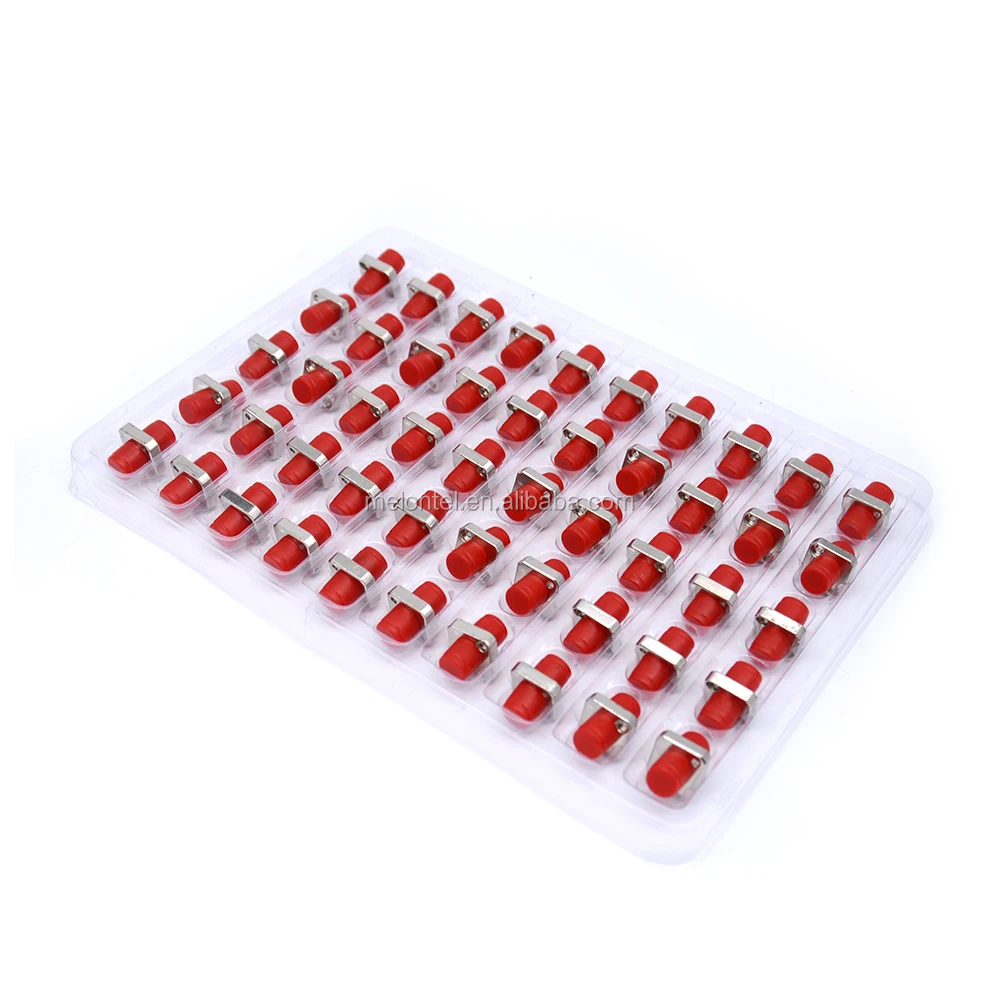

50 Pcs/Blister Box

Certification :

ISO9001:2008





 CACA2CA1FC-APC1FC-APC2FC-APCFC-APC3FC-APC方


Type

Single-mode/PC

Single-mode/APC

Multimode/PC

Insertion Loss

≤0.2 dB

≤0.2 dB

≤0.3dB

Durability plug and unplug

1000times

Operation Temperature

-40 to +75

Material

ABS/PBT, Ceramic (Zirconia),Phosphor Bronze alignment sleeves





Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, E2000, MU,MT-RJ, MTP style fiber optic adapters for both multimode and single-mode fiber applications.
