MT-1032-LC2 LC Female Connector Multimode APC Duplex OM3 4 Core Fiber Optic Adapter

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, E2000, MU,MT-RJ, MTP style fiber optic adapters for both multimode and single-mode fiber applications.
Size:
Availability:
Quantity:
  • MT-1032-LC2

  • MELONTEL

Fiber Optic Adaptor


Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, E2000, MU,MT-RJ, MTP style fiber optic adapters for both multimode and single-mode fiber applications.

Quick Details

Place of Origin: CHINA Fiber Count: Simplex, Duplex, Quarlex
Brand Name: MELONTEL Connector Type: SC, FC, ST, LC, E2000, MU, MPO
Model Number: MT-1032-LC2 Grinding Type: PC, UPC, APC
Product Name: fiber optic adapter Insertion Loss:
≤0.2dB
Fiber Type: single-mode, multi-mode OEM: yes
Paking: 50pcs/blister card Certification: ISO9001

Application

fiber optic adaptor

Product Show

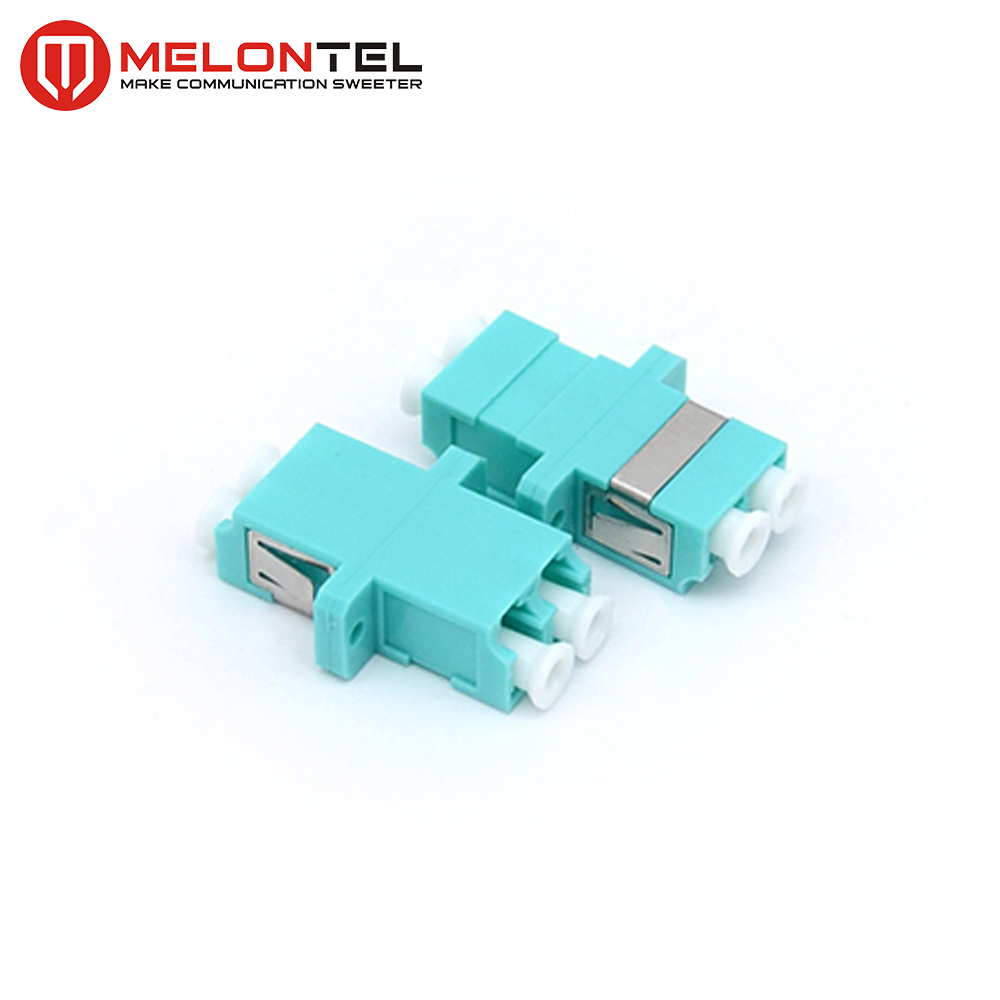

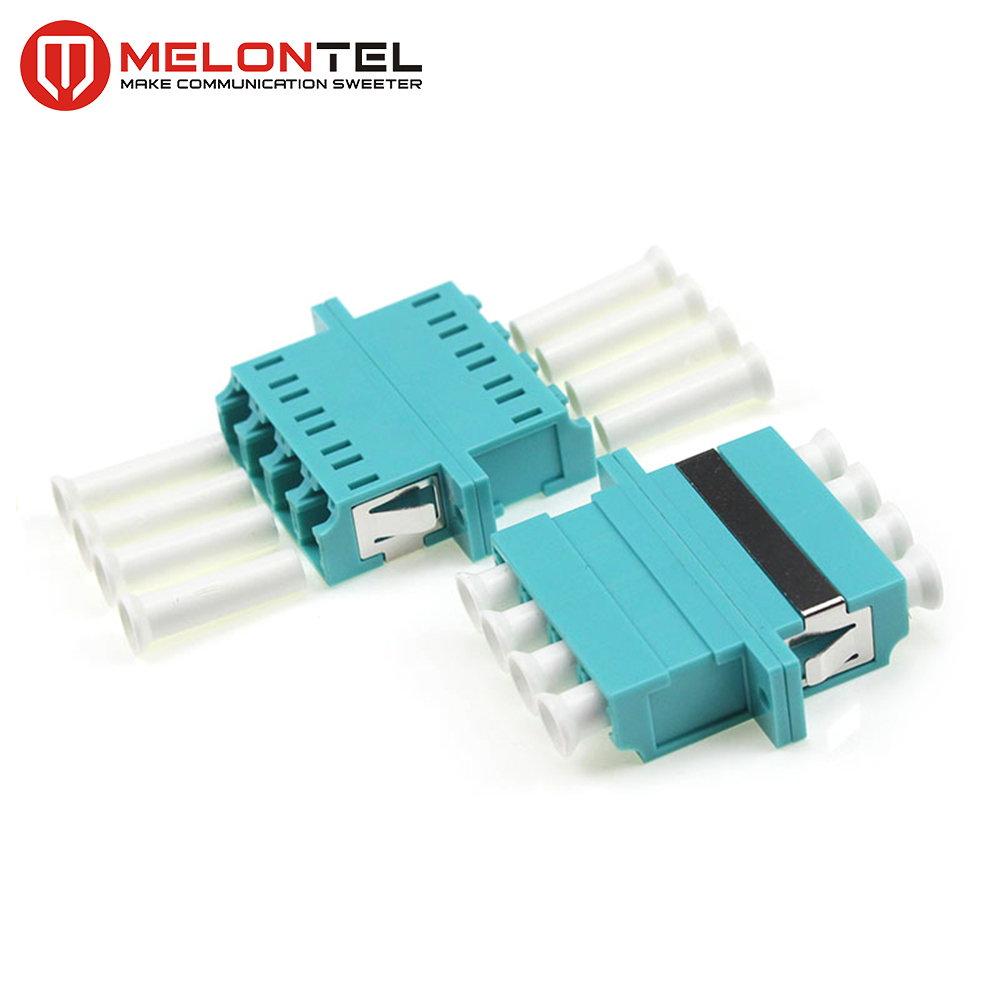

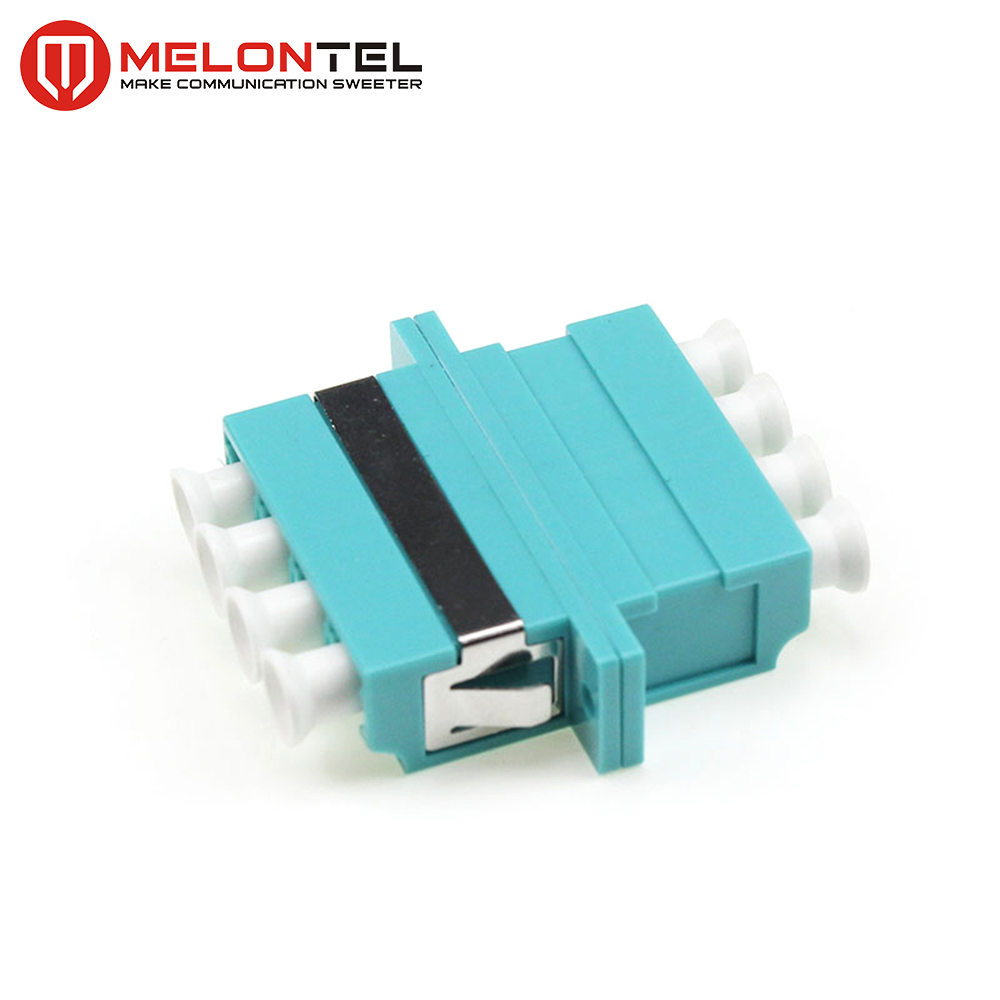

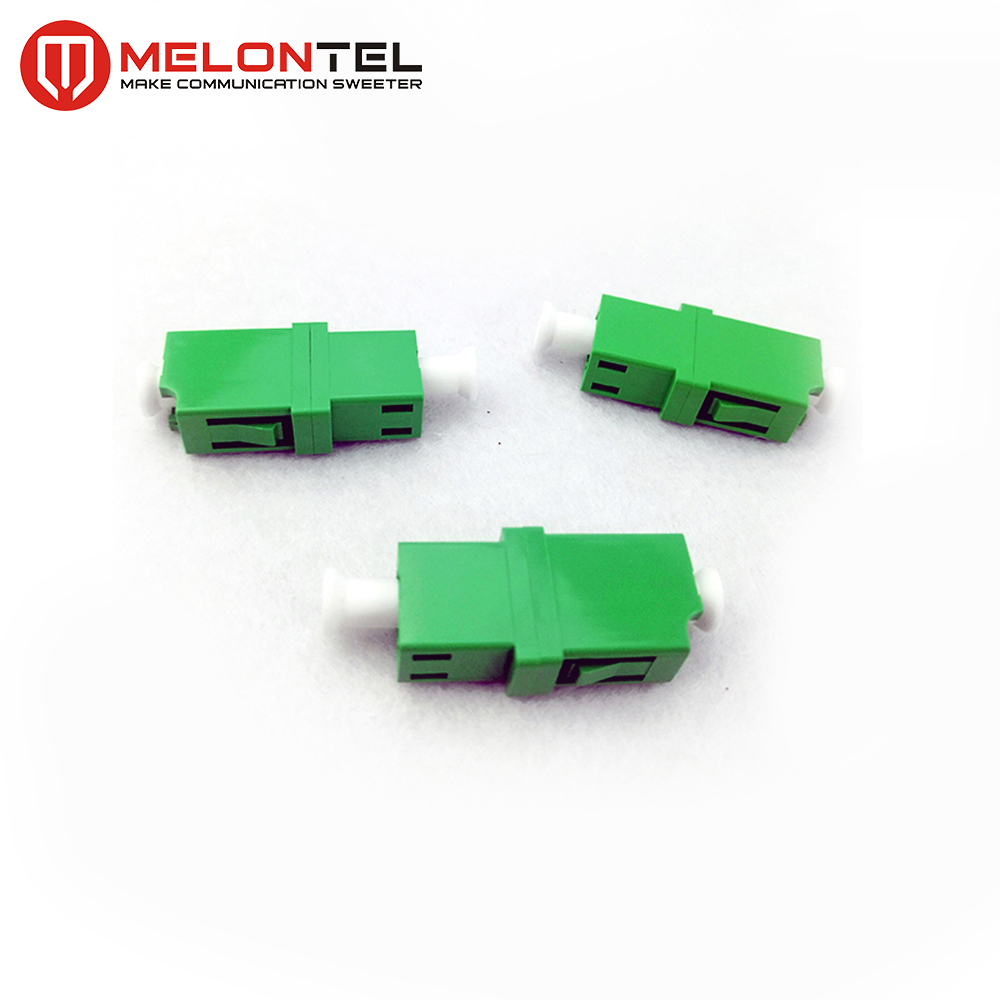

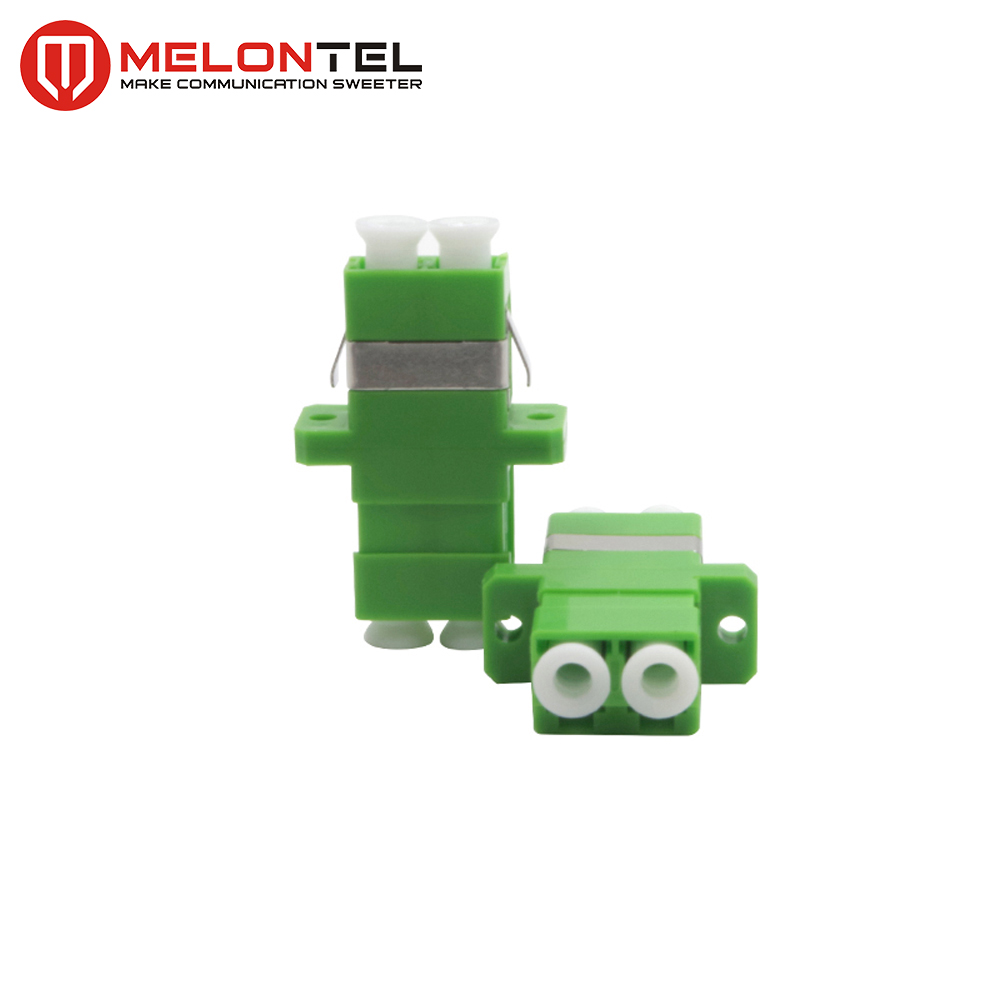

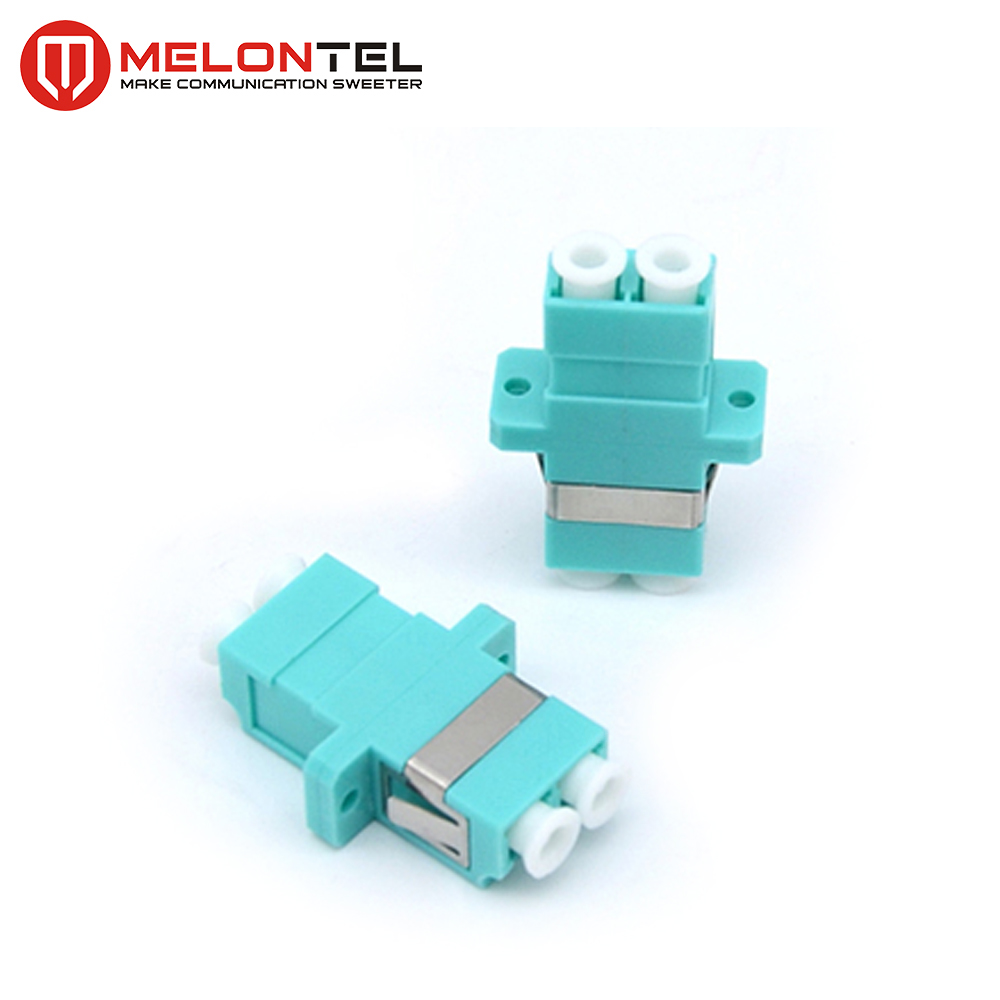

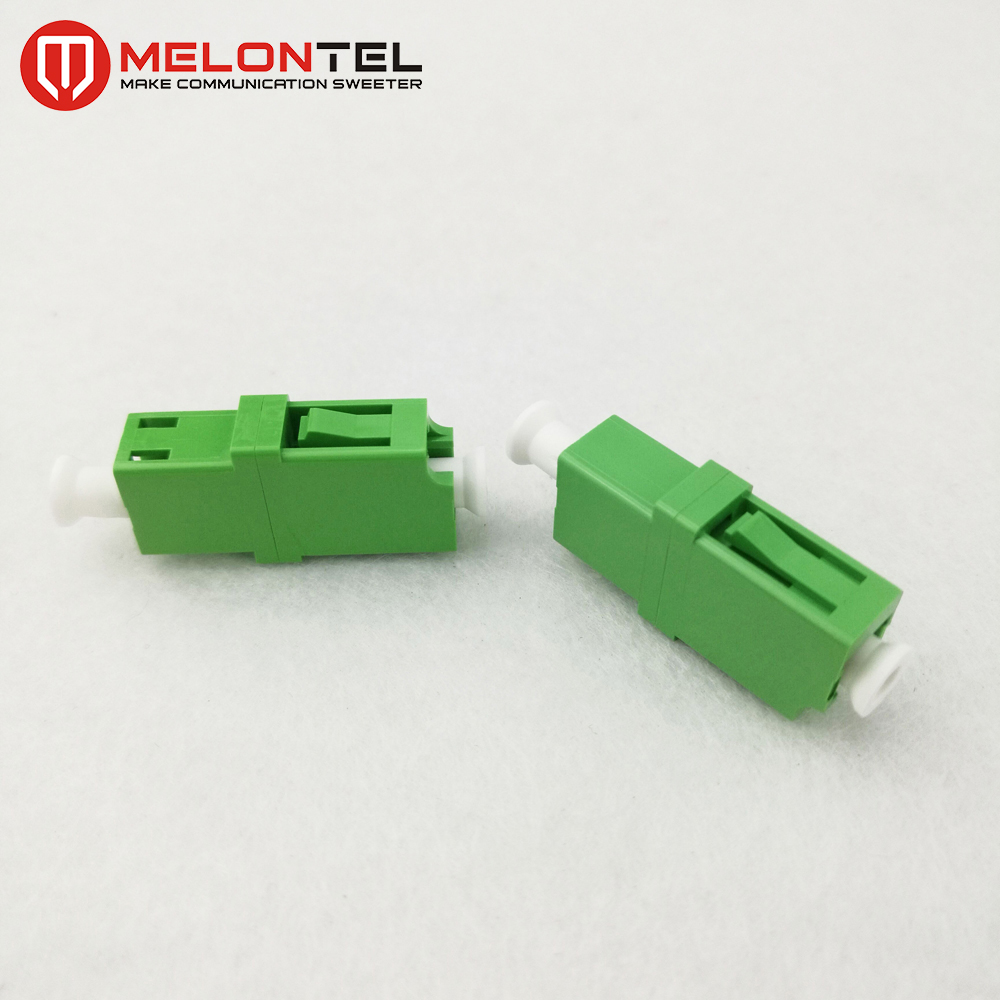

DSC_6021DSC_6075 副本1DSC_6075 副本2G1H1G3J1 (3)J1 (2)


Type

Single-mode/PC

Single-mode/APC

Multimode/PC

Insertion Loss

≤0.2 dB

≤0.2 dB

≤0.3dB

Durability plug and unplug

1000times

Operation Temperature

-40 to +75

Material

ABS/PBT, Ceramic (Zirconia),Phosphor Bronze alignment sleeves




Packaging & Delivery&Supply

supply application

Supply Ability

package

Packing Details

location

Port

the lead time

Lead Time

1000 Piece/Pieces per Day 50 Pcs/Blister Box NingBo 5 days


Product Solutions


1. FTTX

fttx


FTTX is short for "Fiber To The X," which means "Fiber To a Place." FTTX is a general term for various Fiber optic communication networks, where X stands for The destination of The Fiber optic line.

application


2. Structured cabling


Structured cabling


Structured cabling is building or campus telecommunications cabling-infrastructure that consists of a number of standardized smaller elements(hence structured) called subsystems.



Structured cabling is a technique for the construction of all the communication network infrastructure in the building. Reasonable wiring can not only save the investment, but also optimize the network to achieve the best use effect.



Our networking cabling contains many kind of products. Such as lan patch cord、modular plug、keystone jack、inline coupler、surface box、face plate、patch plate、cable panel、cable manager and rack.


3. Networking


networking


Networking is a globally coordinated network of specific devices used to transfer, accelerate, display, calculate, and store data information on the internet network infrastructure.



Server is a computer software that manages resources and provides services to users, usually divided into file servers (which allow users to access files on other computers), database servers, and application servers.A computer running the above software, or a network host.


4. Security and Protection


Security and Protection

Acquisition front end

 Monitoring terminal

Server room

Acquisition front end Monitoring terminal Server room
