MT-S1778
Melontel

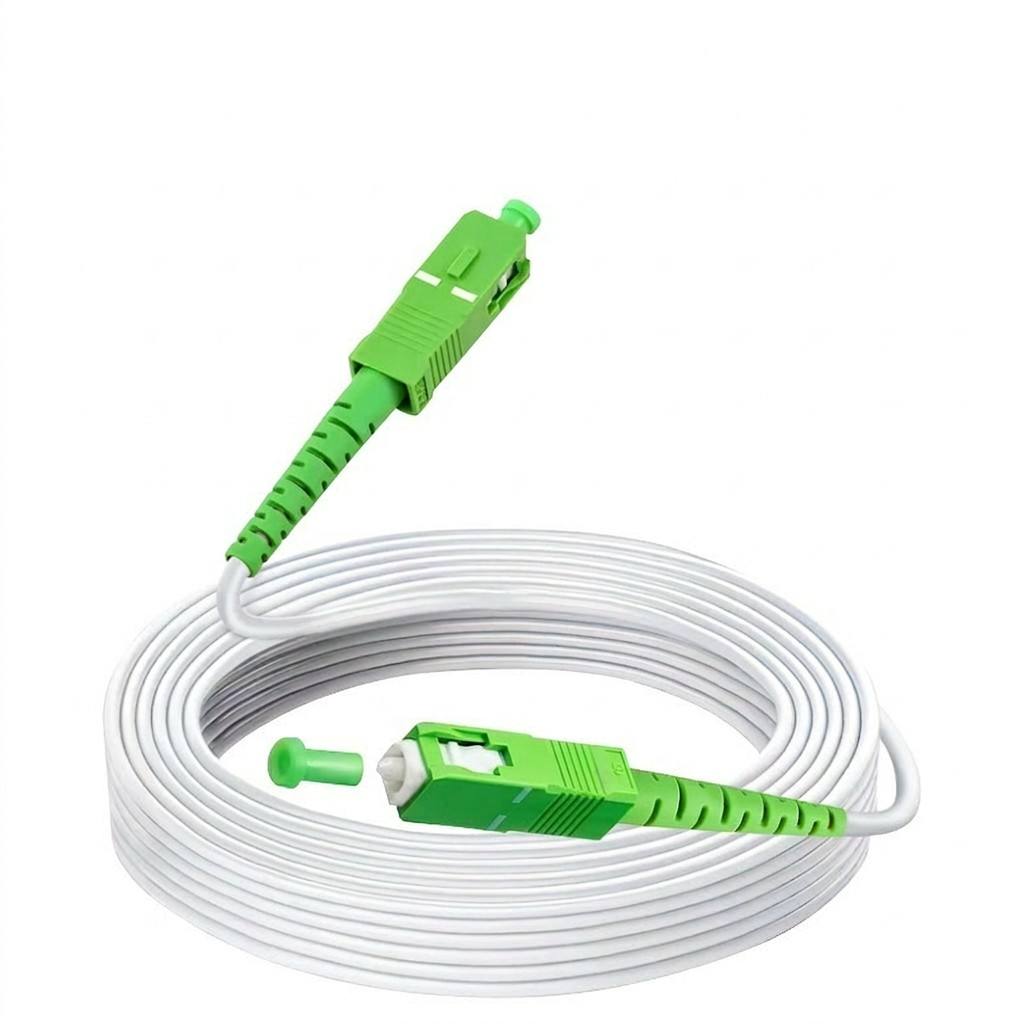

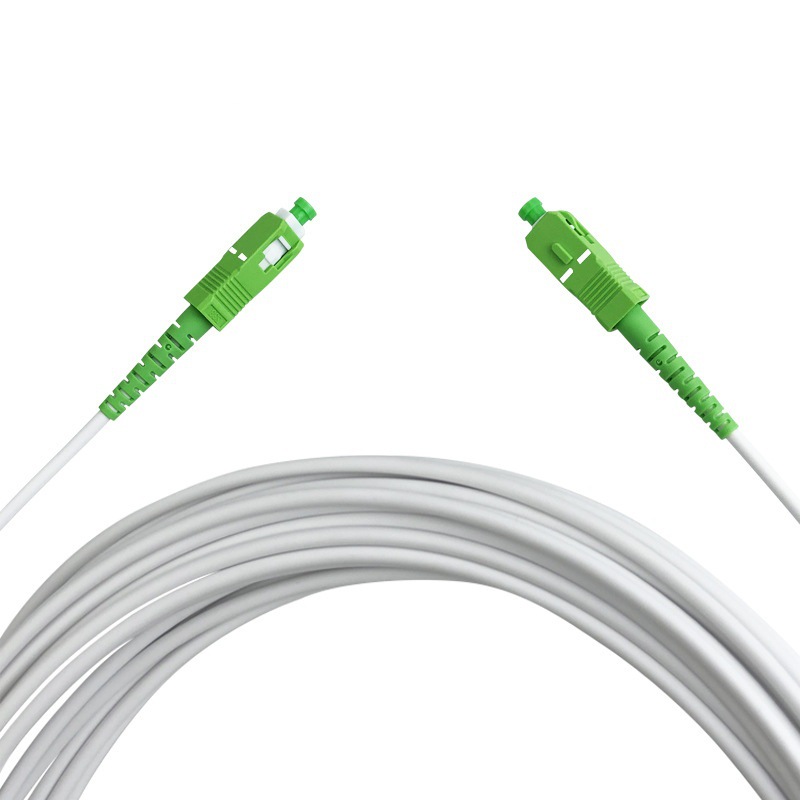

This Melontel MT-S1778 armored jumper cable delivers superior data transmission for high-speed FTTH networks. Precision-engineered stainless steel armor protects the single-mode OS2 fiber core while maintaining low insertion loss. The ruggedized design ensures high return loss and exceptional signal stability in demanding telecommunications infrastructure deployments.

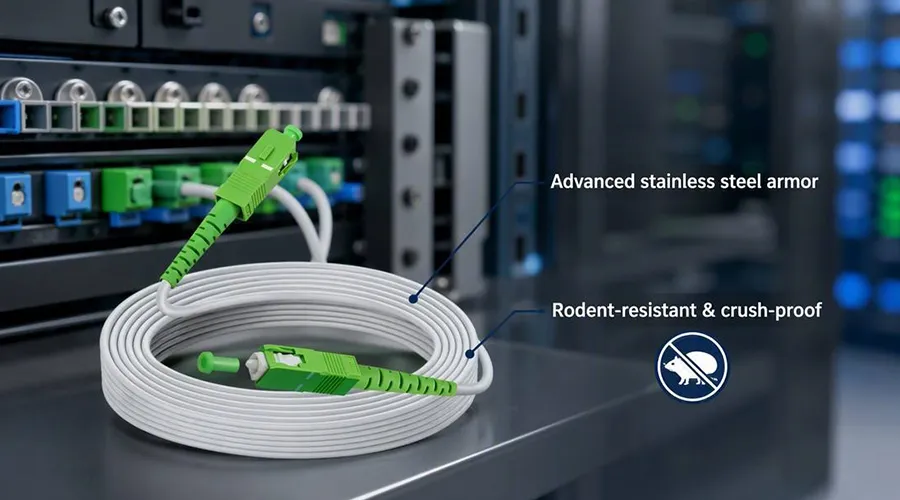

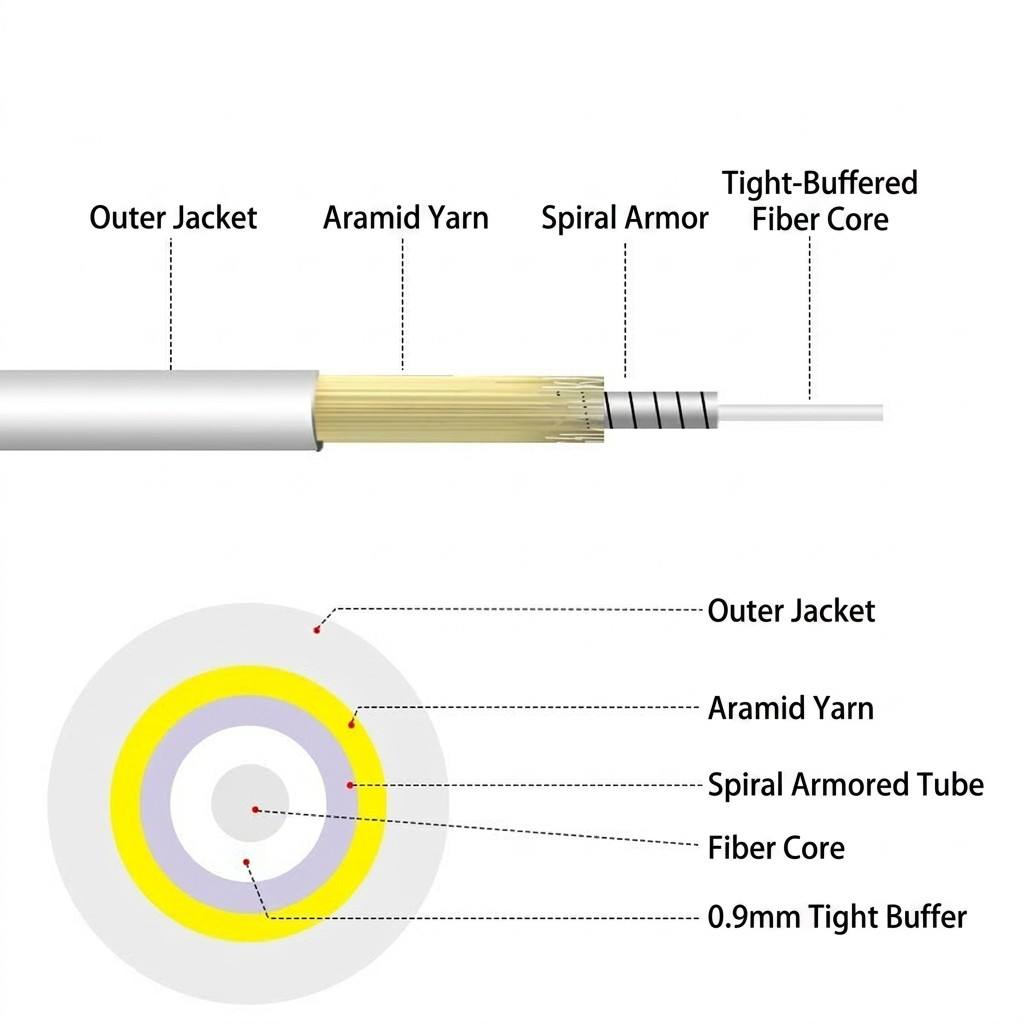

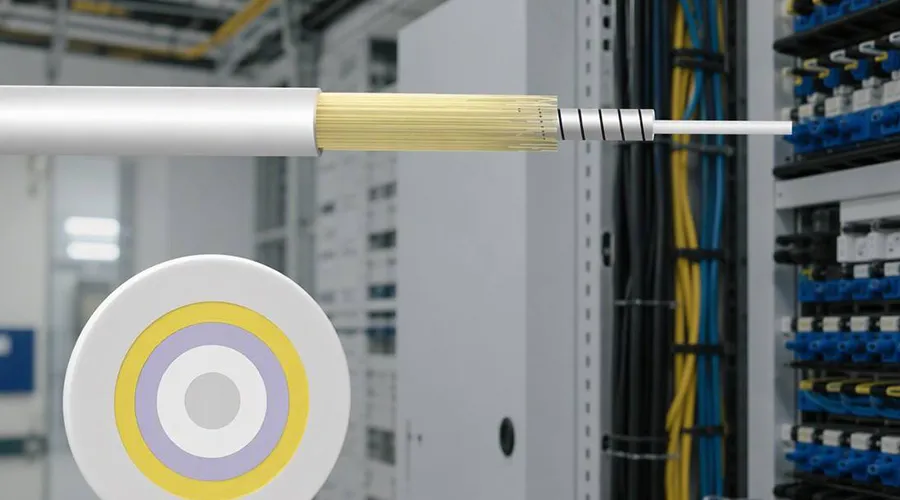

The internal stainless steel tube provides robust protection against rodent bites and physical crushing. This flexible armored layer prevents micro-bending while maintaining excellent cable mobility. Ruggedized construction extends the service life in complex indoor and outdoor cabling environments.

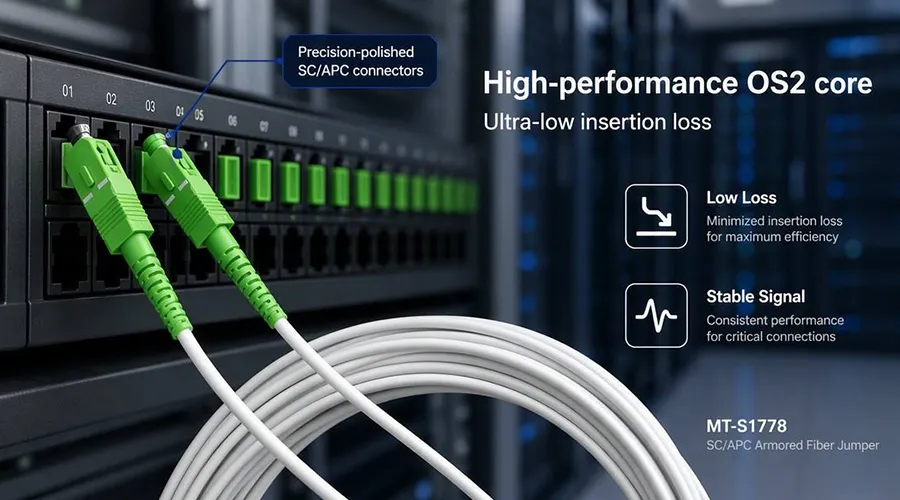

The 9/125um single-mode fiber core ensures ultra-low attenuation for long-distance data transmission. Precision-polished SC/APC connectors achieve high return loss and stable network connectivity. Strict manufacturing standards guarantee consistent optical performance across high-bandwidth FTTX applications.
The Low Smoke Zero Halogen outer jacket enhances safety by minimizing toxic gas emission during fire. Durable white jacketing material resists moisture and ultraviolet degradation in diverse climates. Compact simplex design simplifies cable routing and organization in high-density distribution frames.
Q: Does the armored design affect the cable's flexibility? A: The flexible stainless steel tube provides robust protection without sacrificing bend radius. It allows for easy routing in tight spaces while preventing damage from crushing or kinking.
Q: What are the typical insertion and return loss values for the MT-S1778? A: This patch cord maintains insertion loss below 0.2dB and return loss above 60dB for SC/APC connections. These parameters ensure high signal integrity for high-speed Internet and CATV applications.
Q: How does the armored layer prevent damage from rodents? A: The high-strength stainless steel barrier is impenetrable to rodent bites, protecting the internal fiber core. This makes the MT-S1778 an ideal solution for basements, warehouses, and other exposed environments.
Q: Is this cable suitable for high-density fiber distribution frames? A: The compact simplex design and 9/125um fiber core optimize space in crowded distribution racks. Technicians can easily manage and identify links while ensuring stable long-distance transmission.
Q: Do you provide custom cable lengths and connector types? A: We offer full OEM support for custom lengths, different jacket colors, and various connector types like LC or FC. Please contact our technical team to specify your project requirements and receive a quote.
Q: What documentation accompanies each shipment to guarantee quality? A: Each cable undergoes rigorous factory testing for insertion loss and end-face geometry before shipment. Every batch includes a comprehensive test report and complies with ISO9001 and RoHS international standards.
