MT-3805
MELONTEL

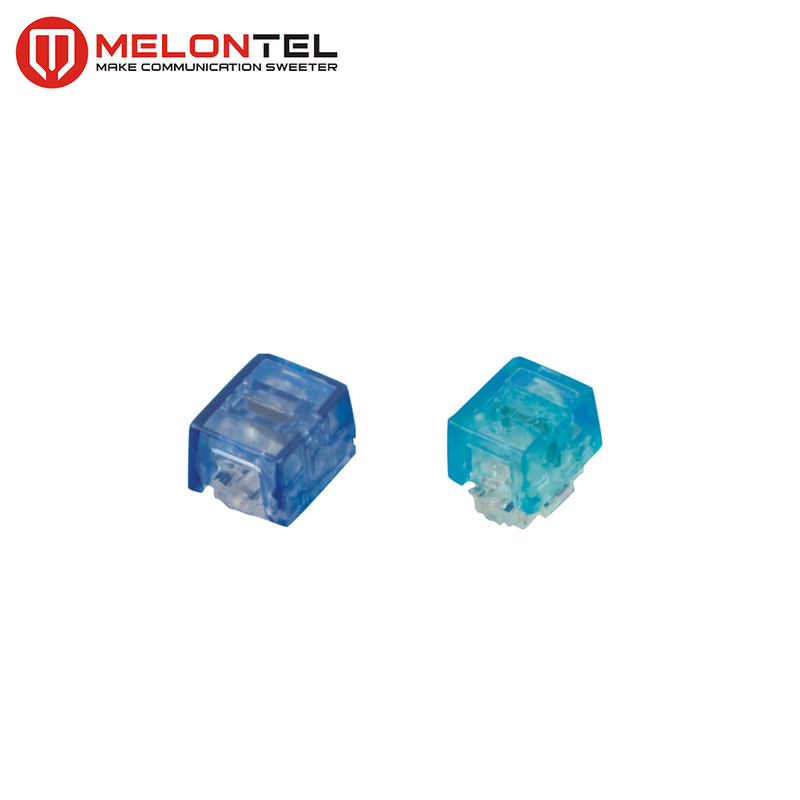

UB2A connector
3M type wire connectors includes a variety of butt splices and inline tap splices.The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to each wire. A "live-spring" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.
The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.
Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
Quick Details
Name : | Connector |
Country of origin : | Ningbo,China |
Application: | Network and Telecommunication |
Insulation : | 2.08 mm(max) |
Conductor: | 0.4-0.9mm |
Type: | UB2A |
Color: | Blue |
Packing : | 100 pcs/bag |
Warranty period : | 5 year |
Application
Product Show
Packaging & Delivery&Supply
Supply Ability |
Packing Details |
Port |
Lead Time |
| 1000 Piece/Pieces per Day | 50 Pcs/Blister Box | NingBo | 5 days |
UB2A connector
3M type wire connectors includes a variety of butt splices and inline tap splices.The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to each wire. A "live-spring" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.
The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.
Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
Quick Details
Name : | Connector |
Country of origin : | Ningbo,China |
Application: | Network and Telecommunication |
Insulation : | 2.08 mm(max) |
Conductor: | 0.4-0.9mm |
Type: | UB2A |
Color: | Blue |
Packing : | 100 pcs/bag |
Warranty period : | 5 year |
Application
Product Show
Packaging & Delivery&Supply
Supply Ability |
Packing Details |
Port |
Lead Time |
| 1000 Piece/Pieces per Day | 50 Pcs/Blister Box | NingBo | 5 days |
