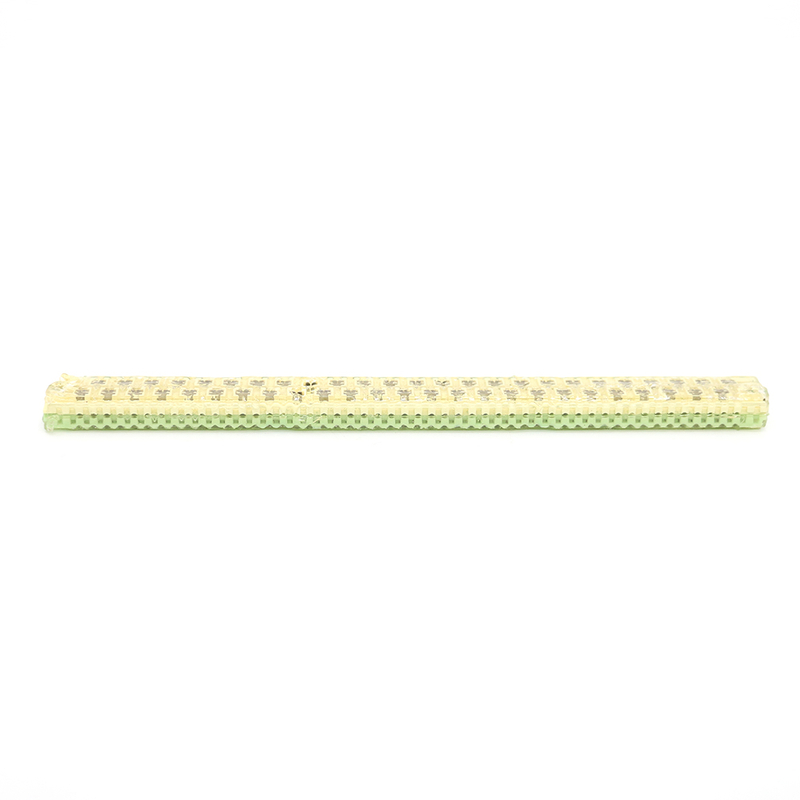

MT-3502 3M MS2 Super Mini Half Tap Module Dry Transparent 25 pair 3m splicing module

25-pair Communication Cable Connecting Module is used to connect 28-20AWG all plastic communication cables (diameter 0.32 « 0.80mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit.

Quantity:
  • MT-3502
  • MELONTEL

3M Module



Technique Characteristics:

25-pair Communication Cable Connecting Module is used to connect 28-20AWG all plastic communication cables (diameter 0.32 « 0.80mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit.

1. The contact is designed into tuning fork type and sheet joint so that connection will not be hampered.

2.irect connection, bridge connection and multiple connection can all be adopted. You do not bother to peel the protection coat and just use simple tool to have one time forming. The contact is sealed with organosilicon grease, proof against water and corrosion.

3.28-20AWG(diameter 0.32«0.80mm) insulative solid copper and all plastic communication cables can be connected.

4.Operating environment: Temperature: -30 --+70;Relative humidity: < 85%;Atmospheric pressure: 70 --106kpa

5.Insulation resistance: insulation resistance between any two terminals ≥1 x 104MΩ¸ (normal temperature and normal humidity)

6.ontact resistance: contact resistance between connection card and leading line ≤5 mΩ¸

7.Electric strength: exert 2000 V DC (or AC 1400V) voltage between metal lead and insulative cover of the connected module, no damage to the module and no spark breakdown within 1 min.

 Quick Details



Name :

25 Pair Distribution Box

Country of origin :

Ningbo,China

Materia :

Plastic

Color :

Green/Yellow

Capacity :

25 Pair

Length :

165mm

Weight :

20g







Application

fiber optic adaptor

Product Show

DSC_7009DSC_7010DSC_7011DSC_7012DSC_7013DSC_7014

Packaging & Delivery&Supply

supply application

Supply Ability

package

Packing Details

location

Port

the lead time

Lead Time

1000 Piece/Pieces per Day 50 Pcs/Blister Box NingBo 5 days
