MT-1099
Fiber Parameters
No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 | ||

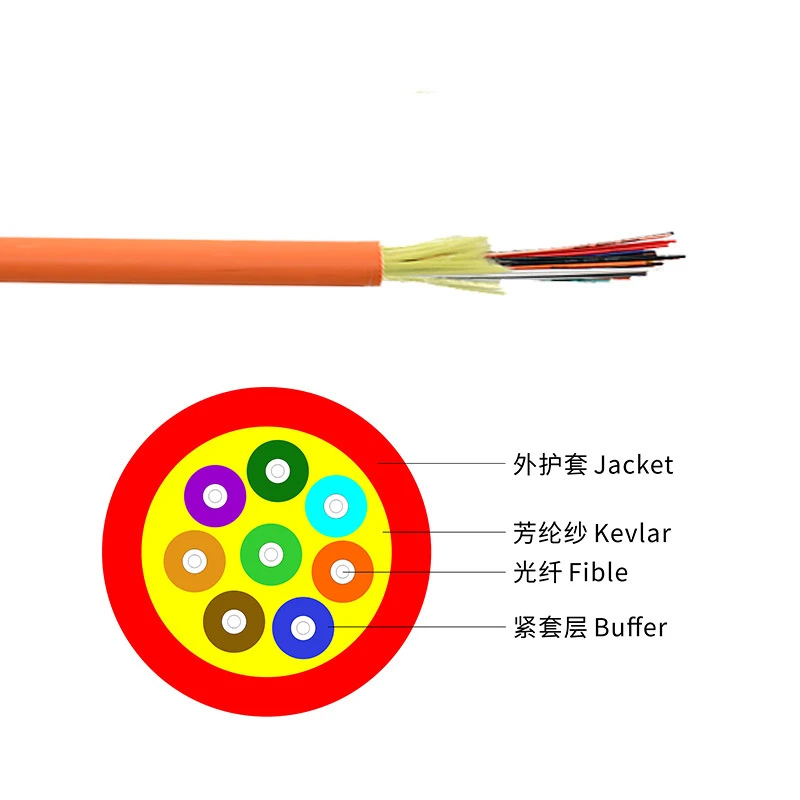

Cable Parameters
Items | Specifications | ||
Fiber Count | 4 | ||
Tight-buffered Fiber | Dimension | 850±50μm | |
Material | PVC | ||
Color | Blue,Orange,Green,Brown | ||
Strength Member | Kevlar | ||
Outer Jacket | Thickness | 1.5mm | |
Dimension | 5.0±0.2mm | ||
Material | LSZH | ||
Color | Black | ||
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tension(Long Term) | N | 500 |
Tension(Short Term) | N | 1000 |
Crush(Long Term) | N/10cm | 300 |
Crush(Short Term) | N/10cm | 1000 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+60 |
Storage Temperature | ℃ | -40~+60 |
