MT-1037 Fiber Optic Sleeve Heat Shrink Splice Tube Splicing Protection Tube

Fiber Optic cable protection Sleeve, Shrink tube, Fiber heat shrink tube, Optic Fiber heat shrink tube, Fiber heat shrink tube shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

The sleeve can be divided into two types (single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function. Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12 cores (for types).
Availability:
Quantity:
  • MT-1037

  • MELONTEL

Fiber Optic Sleeve


Fiber Optic cable protection Sleeve, Shrink tube, Fiber heat shrink tube, Optic Fiber heat shrink tube, Fiber heat shrink tube shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

The sleeve can be divided into two types (single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function. Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12 cores (for types).



Quick Details

Product name:

Fiber Optic Splice Sleeve

Country of origin:

Ningbo,China

Application

FTTH

Color

Transparent

Length

40mm/45mm/50mm/60mm

Diameter of pin

1.0mm/1.2mm/1.4mm

Pin count:

1

Packing:

100 pcs /bag

Material:

EVA


Application

fiber optic adaptor

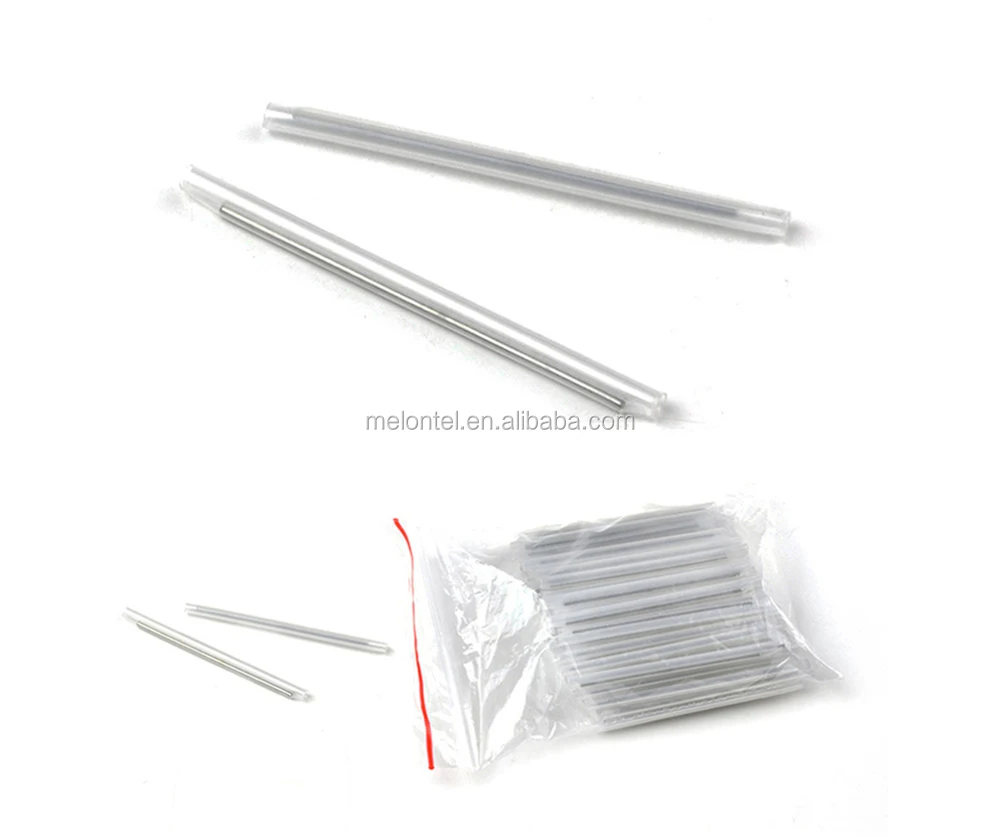

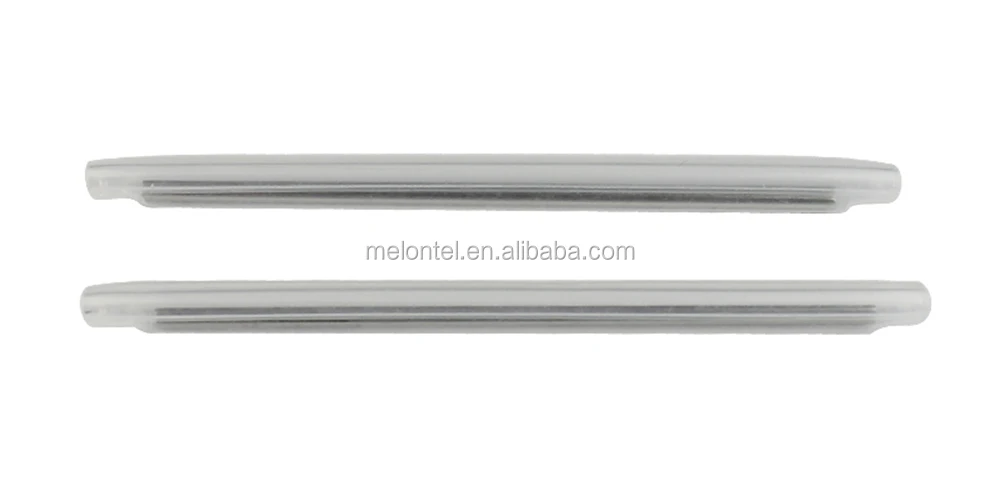

Product Show

a.jpgb.jpg44.jpg66.jpg2 .jpg55.jpg

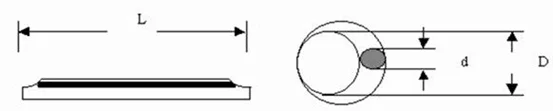

Type

Heat Shrink Tubing(L)

(mm)

Hot-melt Tube (D)

(mm)

Steel Needle(d)

(mm)


After

recover

length

Inner diam

eter

length

diameter



length

MT-1037-60A

2.5±0.1

59±1

1.3±0.05

59±1

1.2±0.02

54±1

MT-1037-50A

2.5±0.1

50±1

1.3±0.05

50±1

1.2±0.02

45±1

MT-1037-45A

2.5±0.1

45±1

1.3±0.05

45±1

1.2±0.02

40±1

MT-1037-40A

2.5±0.1

40±1

1.3±0.05

40±1

1.2±0.02

35±1

package:100pcs/bag;24pcs/bag;12pcs/bag;









.jpg










Packaging & Delivery&Supply

supply application

Supply Ability

package

Packing Details

location

Port

the lead time

Lead Time

1000 Piece/Pieces per Day 50 Pcs/Blister Box NingBo 5 days
