MT-1523H-32
Melontel
This MT-1523H-32 Fiber Distribution Box is precision-engineered to deliver high-capacity transmission across 32-port termination networks. Optimized for dense 96F splice management, it maintains minimal signal attenuation and low insertion loss. The IP68-rated housing ensures a stable connection for large-scale outdoor FTTH infrastructure, guaranteeing reliable long-term performance.

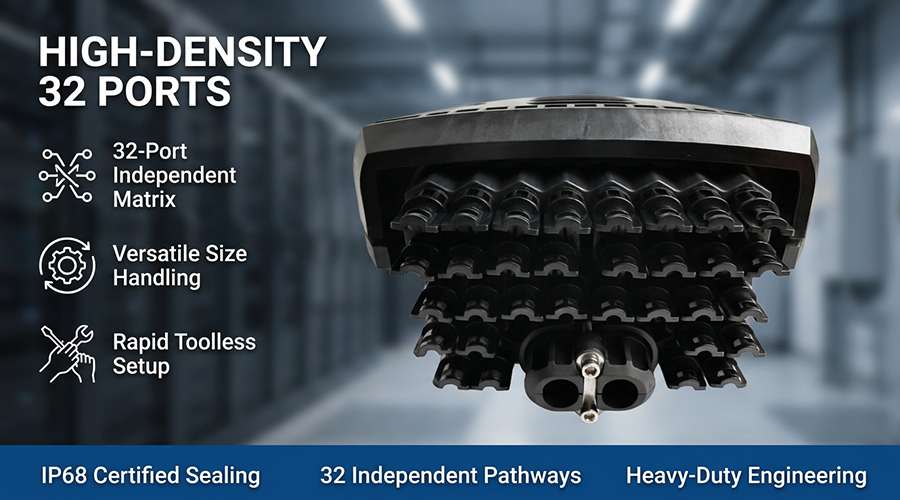

The MT-1523H-32 integrates 32 ports to support high-density SC or LC fiber terminations. This centralized terminal layout simplifies subscriber cable management in large-scale FTTX deployments. Modular internal adapter panels accommodate diverse connector types for maximum network flexibility.

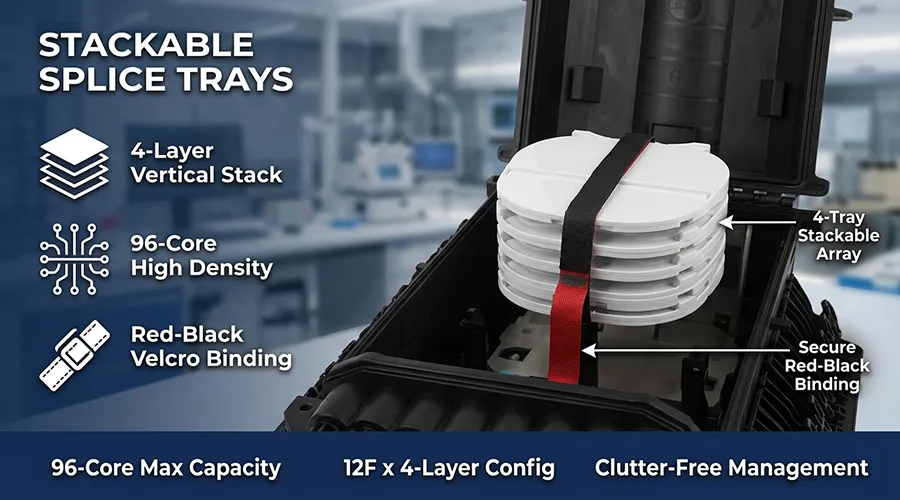

High-capacity trays organize 96 fiber splices with precision to maintain signal integrity. Optimized routing paths prevent structural stress and minimize signal attenuation across all links. The internal dual-layer structure segregates splicing and distribution for efficient field maintenance.

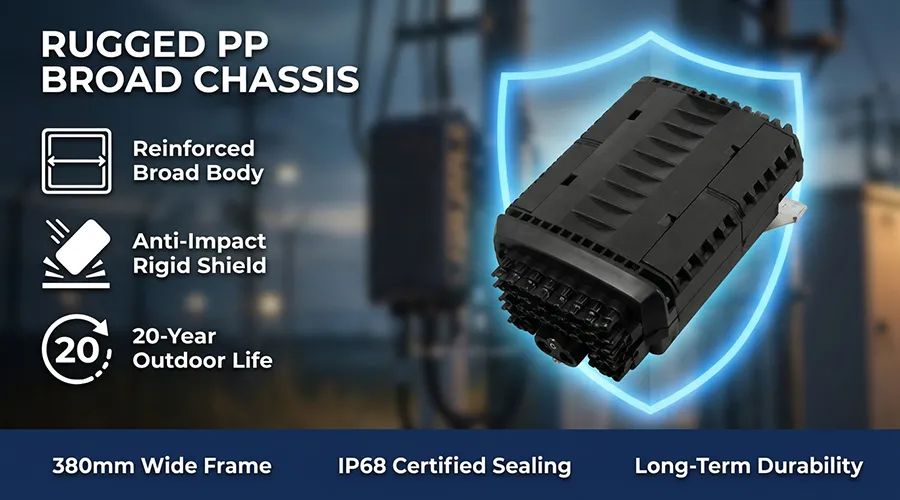

High-strength polymer PP housing withstands extreme weather conditions and long-term ultraviolet exposure. Advanced mechanical sealing systems achieve a verified IP68 rating against water and dust ingress. Rugged construction protects sensitive fiber connections during demanding outdoor infrastructure service lives.
Q: Does the MT-1523H-32 support LC duplex adapters to increase port density? A: Yes, the modular adapter panel accommodates up to 32 SC simplex or 32 LC duplex adapters depending on your network requirements. This flexibility allows for significantly higher subscriber capacity within the same IP68 enclosure. It streamlines the transition from traditional SC to modern LC high-density connections.
Q: How does the PP material protect internal components from ultraviolet (UV) aging? A: We incorporate specialized UV-stabilized additives into the high-strength PP housing during the injection molding process. This ensures the box remains structurally sound and resists embrittlement even after years of direct sunlight exposure. It provides a cost-effective, durable solution for long-term outdoor telecommunications infrastructure.

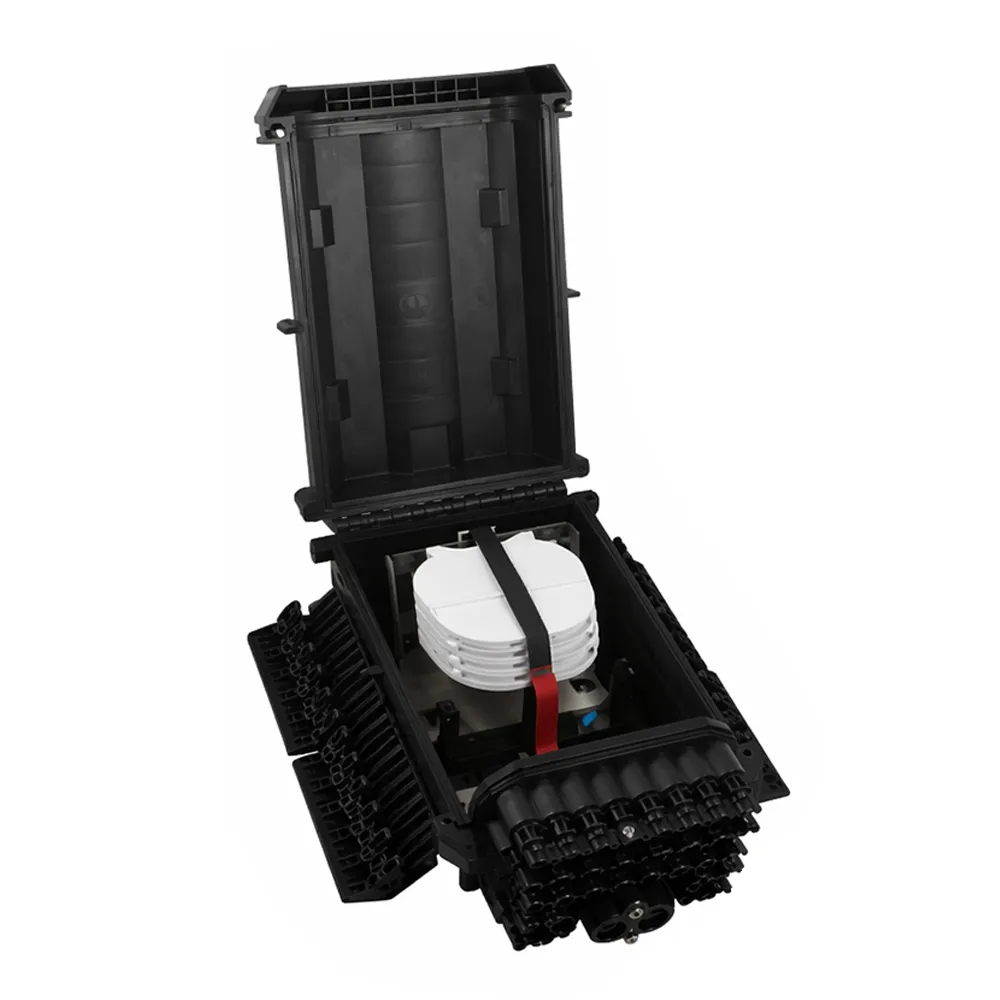

Q: Can technicians perform splicing and distribution tasks simultaneously in this box? A: The MT-1523H-32 features a dual-layer internal structure that separates the splice trays from the adapter distribution area. This design allows technicians to manage subscriber connections without disturbing the primary fiber splices. It minimizes the risk of accidental link disruptions during routine field maintenance.

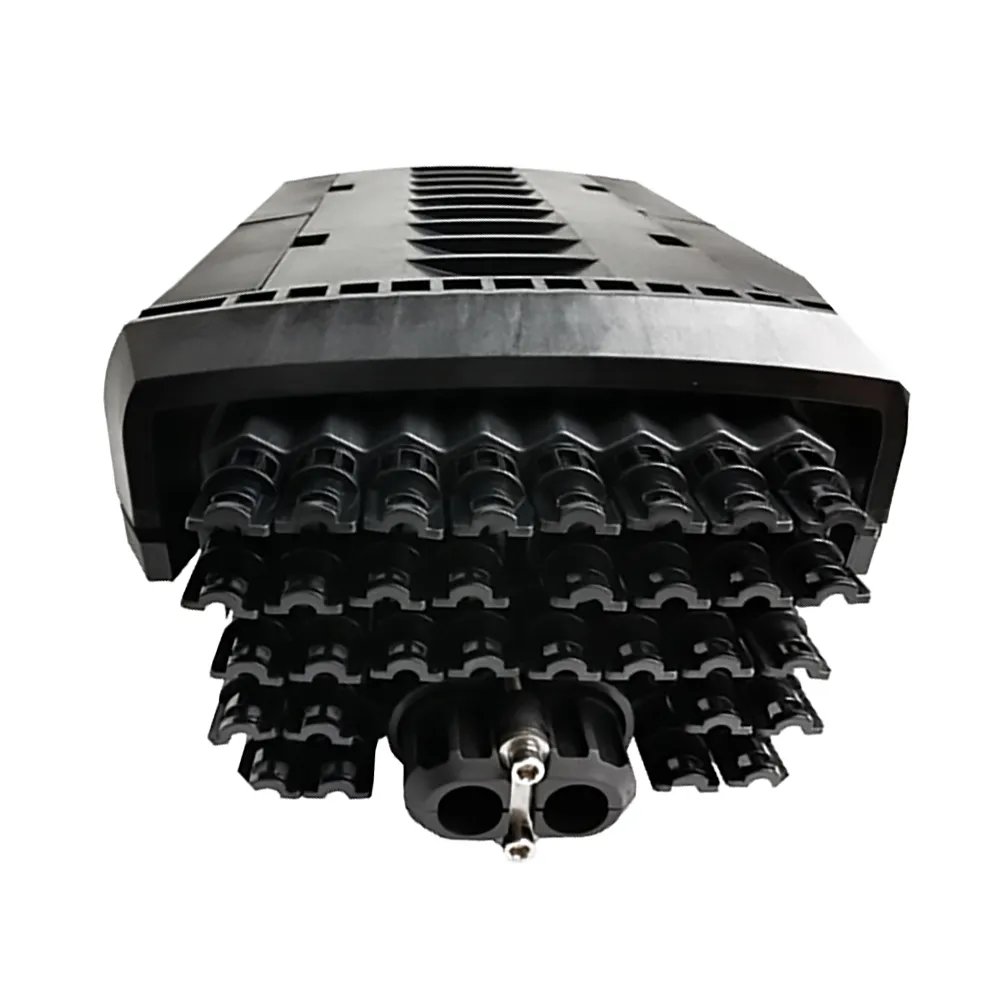

Q: What is the maximum cable diameter compatible with the 32-port entry layout? A: The main entry ports accept feeder cables from 10mm to 17.5mm, while the 32 drop cable ports handle standard 2mm-3mm patches. Mechanical sealing ensures a verified IP68 rating across all entry points without requiring heat-shrink procedures. This configuration accelerates field deployments for high-volume residential FTTH rollouts.
Q: Do you offer professional OEM services for custom logos and project identification? A: We provide full OEM support, including laser-etched logos and customized serial numbering for inventory tracking. Our design team can also adapt the internal accessory kit to meet specific project deployment standards. Please contact our sales team for minimum order quantities for custom housing colors.
Q: What technical documentation accompanies each shipment for project compliance? A: Each batch includes comprehensive factory test reports covering IP68 waterproofing, optical attenuation, and mechanical impact resistance. All units fully comply with ISO9001, CE, and RoHS international certification standards. We also offer standard technical support and a 24-month warranty for all project-based orders.
